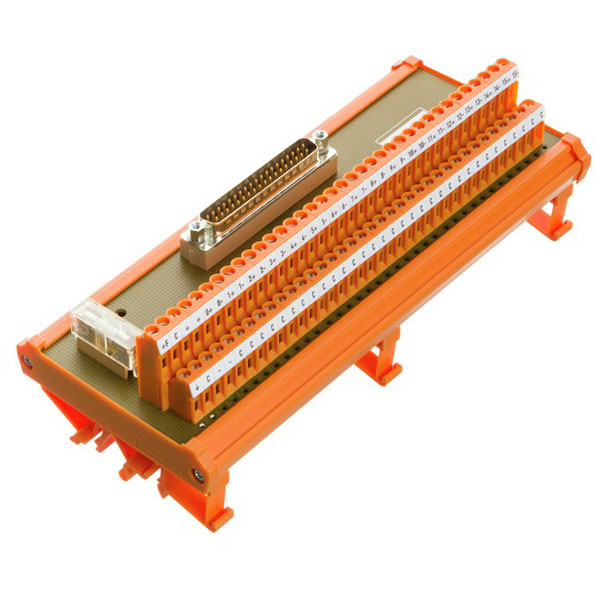

Weidmüller RS 16AIO DP SD Z is a Interface module with terminal, connector, built-in, D-sub connectors, acc. to IEC 60807 / DIN 41652, 37-pole plug, Tension-clamp connection. Transfer module as an interface with terminals, connectors and components.
| Type |
PLC Adapter |
| Termination |
Plugable/ Cage Clamp |
| Wire Gauge |
4mm² |
| According to |
DIN EN 50178 |
| Certificate No. (UR) |
E141197 |
| Clamping range, max. |
2.5mm² |
| Clamping range, min. |
0.13mm² |
| Common pole polarity |
Positive or negative can be |
| Connection (field side) |
LMNZF 5.08mm |
| Connection on control side |
D-sub connectors, acc. to |
| Connection supply |
LMNZF 5.08mm |
| Current-measuring testpoint |
No |
| Depth |
72mm |
| Depth (inches) |
2.8346 inch |
| Disconnection per channel |
No |
| ECLASS 14 |
27-14-11-52 |
| ECLASS 15.0 |
27-14-11-52 |
| ETIM 10 |
EC002780 |
| ETIM 8.0 |
EC002780 |
| ETIM 9.0 |
EC002780 |
| Ferrule with plastic collar, max. |
2.5mm² |
| Flexible with sleeve, max. |
2.5mm² |
| Flexible with sleeve, min. |
0.5mm² |
| Flexible, max. H05(07) V-K |
4mm² |
| Flexible, min. H05(07) V-K |
0.5mm² |
| GTIN (EAN) |
4050118110623 |
| Height |
87mm |
| Height (inches) |
3.4252 inch |
| Insulation test voltage AC |
0.35 kV |
| LED status display per channel |
No |
| LED status of the supply voltage |
No |
| Max. current for common pole |
3.15 A |
| Max. current per channel |
0.5 A |
| Max. wire cross-section, AWG |
AWG 12 |
| Min. wire cross-section, AWG |
AWG 26 |
| Net weight |
351g |
| Number of poles (control side) |
37-pole plug |
| Operating Temperature |
-20...50°C |
| Operating temperature UL, max. |
25°C |
| Operating temperature UL, min. |
0°C |
| Operating Voltage |
= 25 V AC / 50 V DC |
| Pollution severity level |
2 |
| Power supply fuse |
3.15 A |
| Protective earth connection |
Shielding in SUB-D plug-in |
| Pulse voltage test (1,2/50µs) |
0.8 kV |
| Qty. |
1 items |
| Rated current (supply) |
3 A |
| Rated current fuse (supply) |
3.15 A |
| Rated current In |
0.5 A |
| Rated insulation voltage |
<50 V AC |
| Rated voltage DC UN (supply) |
24 V |
| Rated voltage UN |
= 25 V AC 50 V DC |
| REACH SVHC |
Lead 7439-92-1 |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| SCIP |
7b5ffb72-271d-4c73-8b09-bd0aaee3697a |
| Sleeve with plastic collar, max. |
2.5mm² |
| Solid, max. H05(07) V-U |
6mm² |
| Solid, min. H05(07) V-U |
0.5mm² |
| Storage temperature |
-40...60°C |
| Stripping length |
6mm |
| Surge voltage category |
III |
| Tightening torque, max. |
0.6 Nm |
| Tightening torque, min. |
0.5 Nm |
| Type of connection |
Tension-clamp connection |
| Type of test point |
No |
| UL File Number Search |
UL Website |
| Version |
Interface, RS, 2-wire, Tension-clamp connection |
| Voltage point of measurement |
No |
| Width |
205mm |
| Width (inches) |
8.0709 inch |
| Wire cross-section, max. AWG |
AWG 12 |
| Wire cross-section, min. AWG |
AWG 26 |
| Wiring system |
2-wire |
