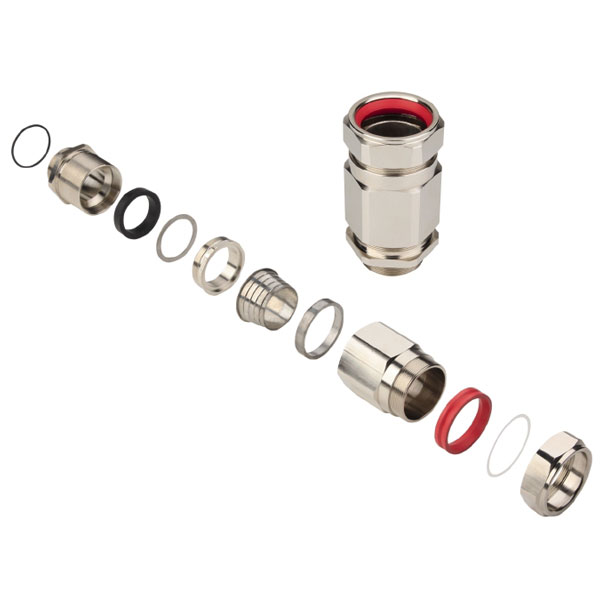

Weidmuller manufactures the 1137070000 cable gland, designed for durability and rated IP68 to ensure excellent protection against dust and water. As a straight M75 component, it is suitable for securing and sealing cable entries in challenging industrial environments. Typical applications include use in electrical installations where robust, reliable connections are required.
| Thread Size |
M75 |
| Colour |
Metal |
| Material |
Brass (Ni-plated) |
| IP Rating |
IP68 |
| Type |
Cable gland |
| AF size 1 |
90mm |
| AF size 2 |
90mm |
| also possible to connect non-armoured cables and lines. |
72.2 mm, ID min. 52.10 - ID max. 62.00 mm, |
| Approval conditions |
ATEX, IECEX |
| Armour, max. |
2.5mm |
| Armour, min. |
0.1mm |
| Available until |
2023-07-30T00:00:00+02:00 |
| Basic material |
Brass, nickel-plated |
| Cable gland |
metric, nickel-plated brass |
| Certificate No. (ATEX) |
SIRA05ATEX1285X |
| Certificate No. (IECEX) |
IECEXSIR05.0067X |
| Certificate no. cable gland (IECEx) |
IECEx CML 19.0109X |
| Delivery status |
Discontinued |
| ECLASS 14 |
27-14-08-04 |
| ECLASS 15.0 |
27-14-08-04 |
| ETIM 10 |
EC000441 |
| ETIM 8.0 |
EC000441 |
| ETIM 9.0 |
EC000441 |
| External thread |
M 75 |
| GTIN (EAN) |
4032248969814 |
| Halogen |
No |
| Height |
131mm |
| Height (inches) |
5.1575 inch |
| Identification |
ATEX: II 2G, Ex db IIC Gb, |
| Inner cable diameter, max. |
62.00mm |
| Inner cable diameter, min. |
52.10mm |
| Installation guidelines |
See assembly instructions |
| Length |
131mm |
| Length (inches) |
5.1575 inch |
| Length of thread |
19mm |
| Net weight |
1980g |
| Operating Temperature |
-60 °C...180°C |
| Operating temperature range, max. |
180°C |
| Operating temperature range, min. |
-60°C |
| O-Ring |
Silicone |
| Outer cable diameter, max. |
72.2mm |
| Outer cable diameter, min. |
64.8mm |
| Pitch of thread |
1.5mm |
| Protection degree |
IP66, IP68 - 2.5 bar |
| Protection degree with GWDR |
IP66, IP68 - 2.5 bar |
| REACH SVHC |
Lead 7439-92-1 |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| SCIP |
3394d55b-7892-488f-8603-ea218c1d0691 |
| Seal insert |
Silicone |
| Sealing |
Silicone |
| Size of protective cap |
EL90 |
| the inner and outer insulation. When the cable gland is |
Qty. |
| Type of armouring |
Single-wire armouring, |
| Type of armouring, short term |
SWA, STA, SWB |
| Version |
KDSU (Klippon double seal universal Ex cable |
| Water depth |
25 m (30 Min.) |
