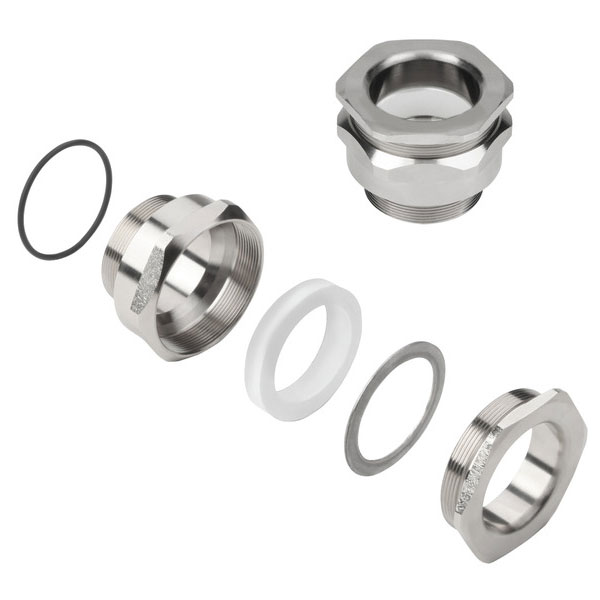

Weidmüller offers the 1136710000 straight cable gland, which is a durable and high-quality M75 type. It provides secure cable entry and strain relief, designed to withstand challenging environments. This component is typically used in industrial and electrical applications to ensure secure and reliable connections.
| Thread Size |
M75 |
| Colour |
Metal |
| Material |
Brass (Ni-plated) |
| Type |
Cable gland |
| AF size 1 |
90mm |
| AF size 2 |
90mm |
| Approval conditions |
ATEX, IECEX |
| Available until |
2023-07-30T00:00:00+02:00 |
| Basic material |
Brass, nickel-plated |
| Cable gland |
metric, nickel-plated brass |
| Certificate No. (ATEX) |
SIRA05ATEX1287X |
| Certificate No. (IECEX) |
IECEXSIR05.0067X |
| Certificate no. cable gland (IECEx) |
IECEx CML 19.0109X |
| Delivery status |
Discontinued |
| ECLASS 14 |
27-14-08-04 |
| ECLASS 15.0 |
27-14-08-04 |
| ETIM 10 |
EC000441 |
| ETIM 8.0 |
EC000441 |
| ETIM 9.0 |
EC000441 |
| Explosion protection type |
Pressure-resistant Ex d |
| External thread |
M 75 |
| GTIN (EAN) |
4032248968190 |
| Halogen |
No |
| Height |
37mm |
| Height (inches) |
1.4567 inch |
| Identification |
ATEX: II 2GD, Ex db IIC Gb, |
| Inner cable diameter, max. |
68.00mm |
| Inner cable diameter, min. |
58.00mm |
| Installation guidelines |
See assembly instructions |
| Length |
37mm |
| Length (inches) |
1.4567 inch |
| Length of thread |
19mm |
| Net weight |
772g |
| Operating Temperature |
-60 °C...180°C |
| Operating temperature range, max. |
180°C |
| Operating temperature range, min. |
-60°C |
| O-Ring |
Silicone |
| Outer cable diameter, max. |
68mm |
| Outer cable diameter, min. |
58mm |
| Pitch of thread |
1.5mm |
| Protection degree |
IP66, IP68 - 2.5 bar |
| Protection degree with GWDR |
IP66, IP68 - 2.5 bar |
| REACH SVHC |
Lead 7439-92-1 |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| Seal insert |
Silicone |
| Sealing |
Silicone |
| Size of protective cap |
L90 |
| Version |
KSG (Klippon standard Ex cable gland), Cable |
| Water depth |
25 m (30 Min.) |
