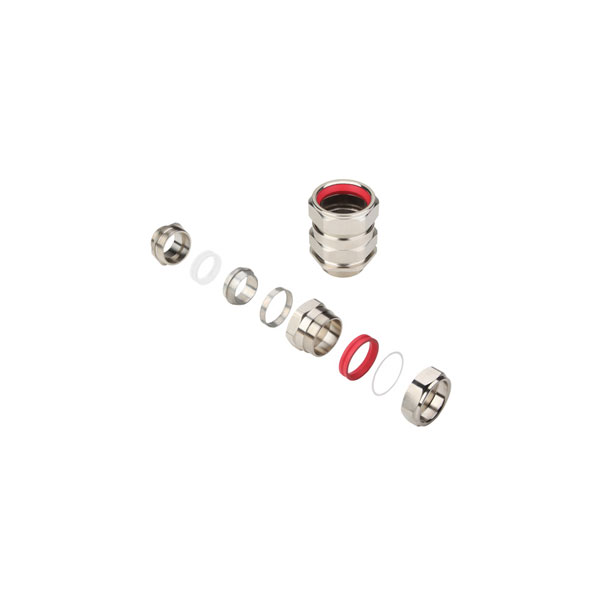

Weidmüller manufactures the 1136650000 cable gland, which is straight with an M 75 thread, known for its durability and weather resistance. It is designed to provide reliable sealing and strain relief for cables. This product is typically used in industrial and outdoor applications where robust protection against environmental factors is required.
| Thread Size |
M75 |
| Colour |
Metal |
| Material |
Brass (Ni-plated) |
| Type |
Cable gland |
| +90°C. When using a silicone seal, a temperature range |
Available until |
| AF size 1 |
90mm |
| AF size 2 |
90mm |
| Approval conditions |
ATEX, IECEX |
| Armour, min. |
2.5mm |
| Basic material |
Brass, nickel-plated |
| Cable gland |
metric, nickel-plated brass |
| Certificate No. (ATEX) |
SIRA05ATEX1286X |
| Certificate No. (IECEX) |
IECEXSIR05.0067X |
| Certificate no. cable gland (IECEx) |
IECEx CML 19.0109X |
| comes with two seals which provide sealing for the outer |
2.5 bar, Brass, nickel-plated |
| ECLASS 14 |
27-14-08-04 |
| ECLASS 15.0 |
27-14-08-04 |
| ETIM 10 |
EC000441 |
| ETIM 8.0 |
EC000441 |
| ETIM 9.0 |
EC000441 |
| External thread |
M 75 |
| GTIN (EAN) |
4032248968091 |
| Halogen |
No |
| Height |
82mm |
| Height (inches) |
3.2283 inch |
| Identification |
ATEX: II 2G, Ex db IIC Gb, |
| Inner cable diameter, max. |
68.00mm |
| Inner cable diameter, min. |
60.50mm |
| Installation guidelines |
See assembly instructions |
| Length |
82mm |
| Length (inches) |
3.2283 inch |
| Length of thread |
19mm |
| Net weight |
1375g |
| Operating Temperature |
-60 °C...180°C |
| Operating temperature range, max. |
180°C |
| Operating temperature range, min. |
-60°C |
| Outer cable diameter, max. |
78mm |
| Outer cable diameter, min. |
71.1mm |
| Pitch of thread |
1.5mm |
| prene seal, the seal allows temperatures from -35°C to |
Delivery status |
| Protection degree |
IP54 |
| Protection degree with GWDR |
IP66, IP68 - 2.5 bar |
| REACH SVHC |
Lead 7439-92-1 |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| SCIP |
3394d55b-7892-488f-8603-ea218c1d0691 |
| Seal insert |
Silicone |
| Sealing |
Silicone |
| Size of protective cap |
L90 |
| Type of armouring |
Single-wire armouring |
| Type of armouring, short term |
SWA |
| Version |
KDSW (Klippon double seal SWA Ex cable gland), |
| Water depth |
25 m (30 Min.) |
