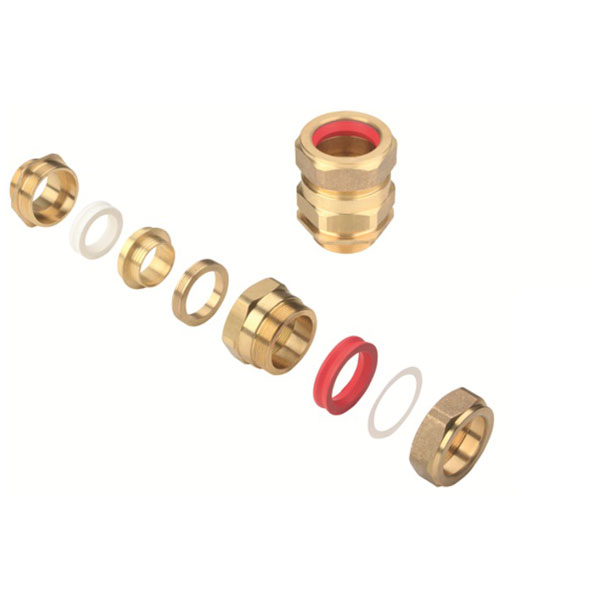

Weidmüller manufactures the 1135750000 Cable Gland which is a straight, M32 weatherproof component. It is designed for secure and reliable cable management in harsh environmental conditions. This product is typically used in industrial and outdoor electrical enclosures to ensure the ingress protection of cables.
| Thread Size |
M32 |
| Colour |
Brass |
| Material |
Brass |
| Type |
Cable gland |
| AF size 1 |
46mm |
| AF size 2 |
46mm |
| Alternative product |
E1XZ/32/M32-WM |
| Approval conditions |
ATEX, IECEX |
| Armour, max. |
0.55mm |
| Armour, min. |
0.15mm |
| Available until |
2023-07-30T00:00:00+02:00 |
| Basic material |
Brass |
| Cable gland |
metric, brass |
| Certificate No. (ATEX) |
SIRA05ATEX1286X |
| Certificate No. (IECEX) |
IECEXSIR05.0067X |
| Certificate no. cable gland (IECEx) |
IECEx CML 19.0109X |
| Delivery status |
Discontinued |
| ECLASS 14 |
27-14-08-04 |
| ECLASS 15.0 |
27-14-08-04 |
| ETIM 10 |
EC000441 |
| ETIM 8.0 |
EC000441 |
| ETIM 9.0 |
EC000441 |
| Explosion protection type |
Improved safety Ex e, |
| External thread |
M 32 |
| GTIN (EAN) |
4032248968398 |
| Halogen |
No |
| Height |
65mm |
| Height (inches) |
2.5591 inch |
| Identification |
ATEX: II 2G, Ex db IIC Gb, |
| Inner cable diameter, max. |
26.30mm |
| Inner cable diameter, min. |
19.00mm |
| Installation guidelines |
See assembly instructions |
| Length |
65mm |
| Length (inches) |
2.5591 inch |
| Length of thread |
16mm |
| Net weight |
420g |
| Operating Temperature |
-60 °C...180°C |
| Operating temperature range, max. |
180°C |
| Operating temperature range, min. |
-60°C |
| Outer cable diameter, max. |
34mm |
| Outer cable diameter, min. |
26.7mm |
| Pitch of thread |
1.5mm |
| Protection degree |
IP54 |
| Protection degree with GWDR |
IP66, IP68 - 2.5 bar |
| REACH SVHC |
Lead 7439-92-1 |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| SCIP |
3394d55b-7892-488f-8603-ea218c1d0691 |
| Seal insert |
Silicone |
| Sealing |
Silicone |
| Size of protective cap |
L46 |
| Type of armouring |
Braided armouring |
| Type of armouring, short term |
SWB |
| Version |
KDSX (Klippon double sealing SWB/STA Ex cable |
| Water depth |
25 m (30 Min.) |
