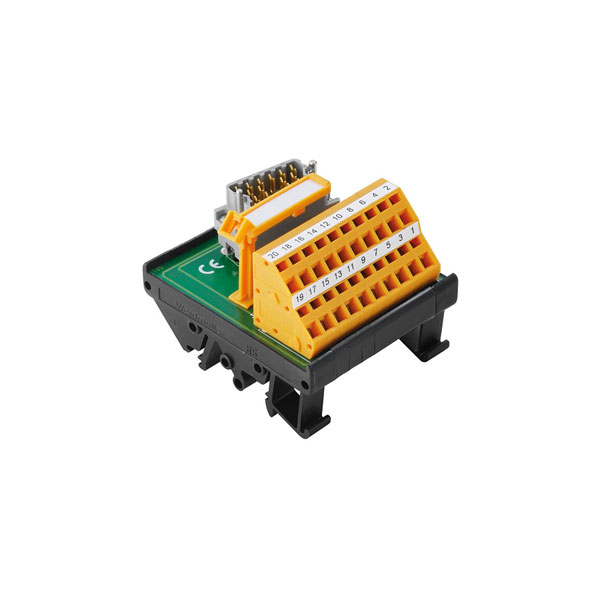

Weidmüllers interface module with ELCO plug-in connector is a 20-pole solution designed for reliable signal transmission. This module features robust construction for industrial environments and ensures secure connections in complex systems. It is typically used in automation and control applications, providing efficient interfacing for various electronic components.
| Type |
Interface module |
| Termination |
Elco/ Cage Clamp |
| No of Ways |
20 |
| Wire Gauge |
4mm² |
| According to |
DIN EN 50178 |
| Available until |
2014-05-20T00:00:00+02:00 |
| Clamping range, max. |
2.5mm² |
| Clamping range, min. |
0.13mm² |
| Connection (field side) |
LM2NZF 5.08mm |
| Connection on control side |
ELCO plug-in connector |
| Connector alignment |
Right |
| Contact material (control side) |
Phosphor bronze alloy |
| Delivery status |
Discontinued |
| Depth |
60mm |
| Depth (inches) |
2.3622 inch |
| ECLASS 14 |
27-14-11-52 |
| ECLASS 15.0 |
27-14-11-52 |
| ETIM 10 |
EC002780 |
| ETIM 8.0 |
EC002780 |
| ETIM 9.0 |
EC002780 |
| Flexible with sleeve, max. |
1.5mm² |
| Flexible with sleeve, min. |
0.25mm² |
| Flexible, max. H05(07) V-K |
1.5mm² |
| Flexible, min. H05(07) V-K |
0.2mm² |
| GTIN (EAN) |
4032248908318 |
| Height |
70mm |
| Height (inches) |
2.7559 inch |
| Insulation test voltage AC |
0.8 kV |
| Max. wire cross-section, AWG |
AWG 14 |
| Min. wire cross-section, AWG |
AWG 24 |
| Net weight |
80g |
| Number of poles (control side) |
20-pole plug |
| Operating Temperature |
-25...50°C |
| Polarity hardware codification |
1 |
| Pollution severity level |
2 |
| Pulse voltage test (1,2/50µs) |
2.5 kV |
| Qty. |
1 items |
| Rated current per connection |
1.5 A |
| Rated insulation voltage |
< 150 V AC |
| Rated voltage |
150 V AC / 200 V DC |
| REACH SVHC |
Lead 7439-92-1 |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| SCIP |
7b5ffb72-271d-4c73-8b09-bd0aaee3697a |
| Sleeve with plastic collar, max. |
1.5mm² |
| Solid, max. H05(07) V-U |
2.5mm² |
| Solid, min. H05(07) V-U |
0.2mm² |
| Storage temperature |
-40...60°C |
| Stripping length |
7.5mm |
| Surge voltage category |
II |
| Total operating current |
30 A |
| Type of connection |
Tension-clamp connection |
| Version |
Interface, RS ELCO, ELCO plug-in connector, 20, |
| Width |
60mm |
| Width (inches) |
2.3622 inch |
