Weidműller 1080570000 Connector 762mm Male Unshrouded

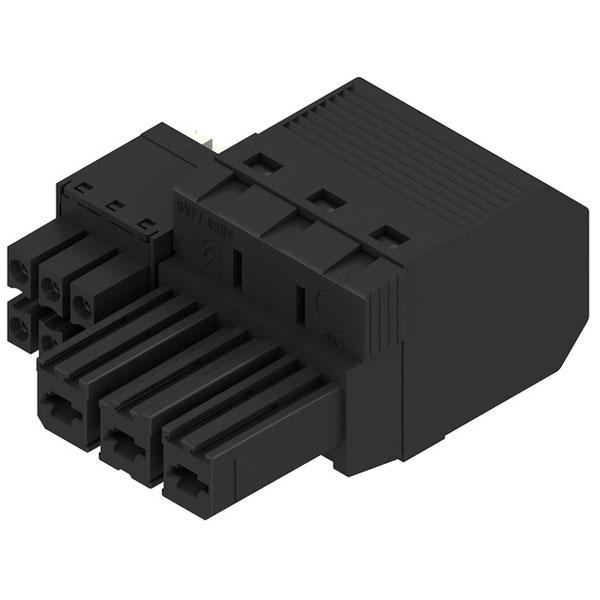

Weidmüller BVF 7.62HP/03/180 BCF/06R SN BK BX is a Hybrid connector (wire connection), 7.62 mm, Number of poles: 3, PUSH IN with actuator, PUSH IN without actuator. Pluggable PCB connection with innovative connection technology for safe and intuitive handling.

Mounting Type	Through Hole
(Power)	(Signal)
(Tu=20°C)	(Tu=40°C)
(Tu=40°C)	pollution degree II/2
46 228/1 (Power)	46 228/1 (Signal)
57 106	0470
Angle contact/conductor connection	180° (horizontal)
Approvals	CSA, cURus
Can be coded	Yes
Certificate No. (CSA)	200039-1121690
Certificate No. (cURus)	E60693
Clampable conductor	Cross-section for conductor connection
Clamping range, max.	10mm²
Clamping range, min.	0.5mm²
class/ pollution degree II/2	class/ pollution degree III/2
class/pollution severity level II/2 (Signal)	class/pollution severity level III/2
class/pollution severity level III/3	(Signal)
Clearance, min.	10.4mm
Coating housing	Uncoated
Color	Black
Colour	black
Colour chart (similar)	RAL 9011
Comparative Tracking Index (CTI)	= 500
Conductor outlet direction	180°
Connectable cable type	Tubular cable
Connectable conductor cross section fine-strand with cable end sleeve	1.5 - 10
Connectable conductor cross section fine-strand without cable end sleeve	0.5 - 10
Connectable conductor cross section multi-wired	10 - 10
Connectable conductor cross section solid-core	0.5 - 10
Connector cross-section (Power)	AWG 24...AWG 8
Contact Material	Copper Alloy
Contact material (Signal)	CuMg
Contact surface	tinned
Contact surface (Signal)	tinned
Contact Type	Bus
Creepage distance, min.	12.7mm
Cross-section for conductor connection	Type
Current Rating	35A
Degree of protection (IP), mounted	IP20
ECLASS 14.0	27-46-03-02
ECLASS 15.0	27-46-03-02
ETIM 10.0	EC002638
ETIM 8.0	EC002638
ETIM 9.0	EC002638
Flammability Rating	UL94 V-0
flexible, H05(07) V-K (Power)	0.5...6mm²
flexible, H05(07) V-K (Signal)	0.14...1.5mm²
Flexible, max. H05(07) V-K	10mm²
Flexible, min. H05(07) V-K	0.5mm²
Graph	Graph
GTIN (EAN)	4032248842780
GTIN (EAN) 4008190165352	Trapezoidal indentation crimp
GTIN (EAN) 4032248608881	of poles: 1
GTIN (EAN) 4032248858590	connection, 7.62 mm, Number of poles: 3, 90°, Solder pin length (l):
GTIN (EAN) 4032248859566	connection, 7.62 mm, Number of poles: 3, 270°, Solder pin length (l):
GTIN (EAN) 4050118895599	thickness (A): 0.8mm
Housing Colour	Black
Housing Material	Plastic
Inflammability class of insulation material according to UL94	V0
Institute (CSA)	CSA
Institute (cURus)	CURUS
Insulating material	PA GF
Insulating material group	II
Insulation Material	Nylon
IPC conformity	Conformity: The products are developed, manufactured and delivered according international
L1 in inches	0.600 "
L1 in mm	15.24mm
L2 in inch	0.300 "
L2 in mm	7.62mm
Layer structure of plug contact	6...8 µm Sn glossy
Layer structure of the plug contact	1-3 µ Ni / 4-8 µ Sn
Material contact	Copper
Material insulation body	Polyamide (PA)
Material of contact surface	Tin
Modular spacing connections	7.62
Modular spacing contacts	7.62
Net weight	19.58g
Notes	•Technical specifications refer to the power contacts
Number of Poles	3
Number of poles (Signal)	6
Number of Rows	1
Number of rows (Signal)	2
Operating Temperature	-50 - 125
Operating temperature, max.	125°C
Operating temperature, min.	-50°C
Overvoltage category	II
Package Quantity	45
Packaging	Box
Pin series quantity	1
Pitch in inches (P)	0.300 "
Pitch in inches (Signal)	0.15 inch
Pitch in mm (P)	7.62mm
Pitch in mm (Signal)	3.81mm
Plugging cycles	25
Plugging force/pole, max.	17 N
Pollution degree	2
pollution degree III/2	pollution degree III/3
pollution severity level III/2 (Signal)	pollution severity level III/3 (Signal)
Product data	IEC: 1000 V / 38 A / 0.5 - 10mm²
Product family	OMNIMATE Power - series
Product image	Dimensional drawing
Pulling force/pole, max.	15 N
Rated cross-section	6mm²
Rated current (Use group B / UL 1059) 5 A	Rated current (Use group C / UL 1059) 5 A
Rated current (Use group C / UL 1059) 35 A	Rated current (Use group D / UL 1059) 5 A
Rated current (Use group D / UL 1059) 5 A	Connector cross-section (Signal)
Rated current In	34
Rated impulse voltage for overvoltage	4 kV
Rated impulse voltage for surge voltage 6 kV	Rated impulse voltage for surge voltage 8 kV
Rated impulse voltage for surge voltage 8 kV	Short-time withstand current resistance 3 x 1s with 420 A
Rated Surge Voltage	8
Rated voltage	1000
Rated voltage (Use group B / UL 1059) 600 V	Rated voltage (Use group C / UL 1059) 600 V
Rated voltage (Use group C / UL 1059] 50 V	Rated voltage (Use group D / UL 1059] 300 V
Rated voltage (Use group D / UL 1059) 600 V	Rated current (Use group B / UL 1059) 35 A
REACH SVHC	No SVHC above 0.1 wt%
Reference text	The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules
Reference to approval values	Specifications are
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Screwdriver blade	0.6 x 3.5
solid, H05(07) V-U (Power)	0.5...10mm²
solid, H05(07) V-U (Signal)	0.14...1.5mm²
Solid, max. H05(07) V-U	10mm²
Solid, min. H05(07) V-U	0.5mm²
Storage temperature, max.	70°C
Storage temperature, min.	-40°C
Stranded, max. H07V-R	10mm²
Temperature range, installation, max.	125°C
Temperature range, installation, min.	-25°C
tested acc. to standard	IEC 60664-1, IEC 61984
Type	PCB Connector
Type of connection	Flexible PCB-connector
Type of electric connection	Push-in clamp connection
UL 94 flammability rating	V-0
UL File Number Search	UL Website
Version	PCB plug-in connector, female plug, 7.62 mm,
Voltage Rating	600V
Volume resistance	4.50 mO
VPE height	62.00mm
VPE length	351.00mm
VPE width	136.00mm
Wire connection cross-section AWG	AWG 24...AWG 16
Wire connection method	PUSH IN with actuator,
Wire cross-section, AWG, max.	AWG 8
Wire cross-section, AWG, min.	AWG 24
wire end ferrule	Stripping length
with wire-end ferrule with collar (Power) 0.5...6 mm²	with wire-end ferrule with collar, DIN 46 0.25...1.5mm²
