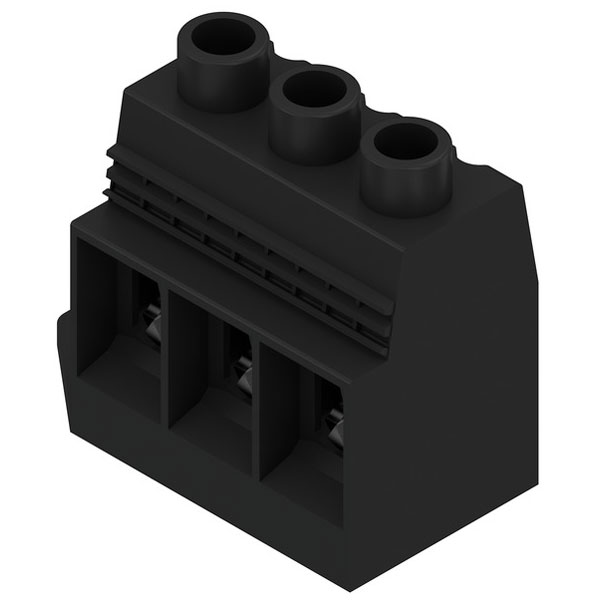

Weidműller 1047460000 PCB Terminal 15.00mm Unshrouded

Weidmüller LXXX 15.00/03/90FL 4.5SN BK BX is a PCB terminal, 1000 V, 150 A, Pitch in mm: 15.00, 50 mm², Number of poles: 3, Clamping yoke connection, THT solder connection, 90°, Box. PCB terminal block (print terminal, board terminal) for simple and safe data transmission directly to the PCB.

Pitch	15mm
Mounting Type	Through Hole
Mounting Direction	Vertical
(Tu=40°C)	pollution degree II/2
Angle PCB/conductor connection	0°/180° (horizontal)
Approvals	CSA, UR
Certificate No. (CSA)	200039-1198743
Certificate No. (UR)	E60693
Clampable conductor	Cross-section for conductor connection
Clamping range, max.	50mm²
Clamping range, min.	0.5mm²
Clamping screw	M 6
class/ pollution degree II/2	class/ pollution degree III/2
Coating	4-6 µm SN
Color	Black
Colour	black
Colour chart (similar)	RAL 9011
Comparative Tracking Index (CTI)	= 600
Conductor outlet direction	90°
Conductor type	Type of conductor
Connectable conductor cross section fine-strand with cable end sleeve	0.5 - 35
Connectable conductor cross section fine-strand without cable end sleeve	0.5 - 35
Connectable conductor cross section multi-wired	6 - 50
Connectable conductor cross section solid-core	0.5 - 16
Connection type conductor	Screw connection
Connection type PCB	Soldering connection
Contact Material	Copper Alloy
Contact Plating	Tin
Contact surface	tinned
Cross-section for conductor connection	Type
Current	127A
Current Rating	127A
Degree of protection (IP), mounted	IP20
Depth	31mm
Depth (inches)	1.2205 inch
ECLASS 14.0	27-46-01-01
ECLASS 15.0	27-46-01-01
ETIM 10.0	EC002643
ETIM 8.0	EC002643
ETIM 9.0	EC002643
Fitted by customer	No
Flammability Rating	UL94 V-0
Flexible, max. H05(07) V-K	35mm²
Flexible, min. H05(07) V-K	0.5mm²
GTIN (EAN)	4032248783694
Height	56
Height (inches)	2.2047 inch
Height of lowest version	51.5mm
Housing Colour	Black
Inflammability class of insulation material according to UL94	V0
installation and maintenance.	Packaging
Institute (CSA)	CSA
Institute (UR)	UR
Insulating material	Wemid (PA)
Insulating material group	I
IPC conformity	Conformity: The products are developed, manufactured and delivered according international
L1 in inches	1.181 "
L1 in mm	30.00mm
Layer structure of solder connection	1.5...3 µm Ni / 4...6 µm Sn
Length pin	4.5
Material connection surface	Tin
Material insulation body	Polyamide (PA)
Max Operating Temperature	120°C
Min Operating Temperature	-50°C
Modular spacing connections	15
Mount	Through Hole
Mounting onto the PCB	THT solder connection
Net weight	90g
Notes	•Additional variants on request
Number of electrical connections	3
Number of levels	1
Number of Poles	3
Number of Positions Per Level	3
Number of Rows	1
Number of solder pins per pole	4
Operating Temperature	-50 - 120
Operating temperature, max.	120°C
Operating temperature, min.	-50°C
Overvoltage category	II
Packaging	Box
Pin series quantity	1
Pitch in inches (P)	0.591 "
Pitch in mm (P)	15.00mm
Pollution degree	2
pollution degree III/2	pollution degree III/3
Product data	IEC: 1000 V / 150 A / 0.5 - 50mm²
Product family	OMNIMATE Power - series
Product image	Dimensional drawing
Protection degree	IP20
Pull-out test	Standard
Qty.	10 items
Rated current (Use group B / CSA)	127 A
Rated current (Use group B / UL 1059) 126 A	Rated current (Use group C / UL 1059) 126 A
Rated current (Use group C / CSA)	127 A
Rated current (Use group D / CSA)	5 A
Rated current In	150
Rated current, min. number of poles	150 A
Rated impulse voltage for surge voltage 8 kV	Rated impulse voltage for surge voltage 8 kV
Rated Surge Voltage	8
Rated voltage	1000
Rated voltage (Use group B / CSA)	600 V
Rated voltage (Use group B / UL 1059) 600 V	Rated voltage (Use group C / UL 1059) 600 V
Rated voltage (Use group C / CSA)	600 V
Rated voltage (Use group D / CSA)	600 V
Rated voltage for surge voltage class /	1000 V
REACH SVHC	No SVHC above 0.1 wt%
Reference text	Length of ferrules is to be chosen depending on the product and the rated voltage., The outside
Reference to approval values	Specifications are
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Screwdriver blade	1.2 x 6.5
Screwdriver blade standard	DIN 5264
Series	Omnimate LXXX
Solder eyelet hole diameter (D)	1.6mm
Solder pin dimensions	1.2 x 1.2 mm
Solder pin length (l)	4.5mm
Solid, max. H05(07) V-U	16mm²
Solid, min. H05(07) V-U	0.5mm²
Storage temperature, max.	70°C
Storage temperature, min.	-40°C
Stranded, max. H07V-R	50mm²
Stranded, min. H07V-R	6mm²
technology in a compact standard housing – integrates	Order No.
Temperature range, installation, max.	120°C
Temperature range, installation, min.	-25°C
Termination	Screw
Test	mark of origin, type identification, type of
Test for damage to and accidental	Standard
Test: Clampable cross section	Standard
Test: Durability of markings	Standard
tested acc. to standard	IEC 60664-1, IEC 61984
the latest market requirements for security, power den-	Type
Tightening torque, max.	4 Nm
Tightening torque, min.	2.5 Nm
Touch-safe protection acc. to DIN VDE	IP 20
Type	PCB terminal
Type of banding	Other
Type of fastening	Solder
Type of PCB fastening	Other
UL 94 flammability rating	V-0
UL File Number Search	UL Website
value-creation chain – including development, production,	UL: 600 V / 126 A / AWG 20 - AWG 1
Version	Printed circuit board terminals, 15.00 mm, Num-
Voltage	600V
Voltage Rating	600V
VPE height	62.00mm
VPE length	255.00mm
VPE width	99.00mm
Width	60.5mm
Width (inches)	2.3819 inch
Wire connection method	Clamping yoke connection
Wire cross-section, AWG, max.	AWG 1
Wire cross-section, AWG, min.	AWG 20
wire end ferrule	Stripping length
Wire Gauge (Max)	20AWG
Wire Gauge (Min)	1AWG
