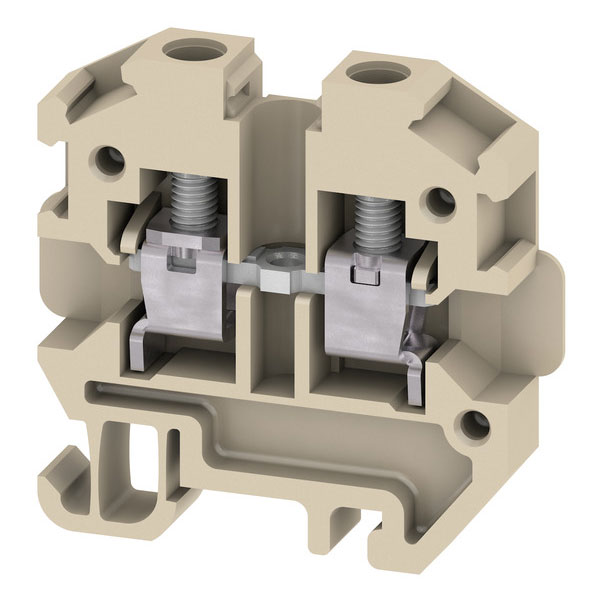

Weidmüller manufactures the 0489560000 terminal screw connection with a 4 mm wire entry. This component features a secure and reliable screw connection, suitable for various electrical installations. It is typically used in industrial and automation applications for connecting wires securely.
| Accessory Type |
Terminal Block |
| 46228/4, min. |
46228/1, max. |
| Alternative product |
AKZ 4 |
| Ambient temperature |
-50 °C…55°C |
| Available until |
2026-06-30T00:00:00+02:00 |
| Basic material |
PA 66 |
| Blade size |
0.6 x 3.5 mm |
| Clamping range, max. |
6mm² |
| Clamping range, min. |
0.13mm² |
| Clamping screw |
M 3 |
| Closing plate required |
true |
| Color |
Beige |
| Colour |
Multi-coloured |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.13 - 2.5 |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.13 - 4 |
| Connectable conductor cross section multi-wired |
0.13 - 4 |
| Connectable conductor cross section solid-core |
0.13 - 6 |
| Connection cross-section, finely |
0.13mm² |
| Connection cross-section, stranded, |
4mm² |
| Connection cross-section, stranded, min.0.13 mm² |
Twin wire-end ferrules, max. |
| Connection direction |
on side |
| Contains Lead |
No |
| Continuous operating temp., max. |
100°C |
| Continuous operating temp., min. |
-50°C |
| core, max. |
core, min. |
| Current at maximum wires |
41 A |
| Delivery status |
This article will no longer be available in the future. |
| Depth |
33 |
| Depth (inches) |
1.2992 inch |
| End cover plate required |
Yes |
| Explosion-tested version |
No |
| Explosion-tested version Ex e |
false |
| Flammability Rating |
UL94 V-2 |
| Gauge to IEC 60947-1 |
A3 |
| GTIN (EAN) |
4008190049737 |
| Height |
36.5 |
| Height (inches) |
1.437 inch |
| Housing Color |
Beige |
| Inflammability class of insulation material according to UL94 |
V2 |
| Insulation Material |
Nylon |
| Internally connected stages |
false |
| Length |
32mm |
| Levels cross-connected internally |
No |
| Material insulation body |
Thermoplastic |
| min. |
stranded with wire-end ferrules DIN |
| Mount |
Through Hole |
| Mounting method |
DIN rail (top hat rail) 15mm |
| Mounting rail |
TS 15 |
| Net weight |
6.39g |
| N-function |
No |
| Nominal Current |
32 A |
| Number of clamp positions per level |
1 |
| Number of clamping points per level |
1 |
| Number of connections |
2 |
| Number of levels |
1 |
| Number of Poles |
1 |
| Number of Positions |
2 |
| Number of potentials |
1 |
| Number of potentials per tier |
1 |
| Number of Rows |
1 |
| Number of similar terminals |
10 |
| Open sides |
right |
| Operating Temperature |
-50 - 100 |
| PE connection |
No |
| PE function |
No |
| PEN function |
No |
| Pollution severity |
3 |
| Power loss in accordance with IEC |
1.02 W |
| Rated cross-section |
4mm² |
| Rated current In |
32 |
| Rated DC voltage |
690 V |
| Rated impulse withstand voltage |
8 kV |
| Rated voltage |
690 |
| REACH SVHC |
No SVHC above 0.1 wt% |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| RoHS Compliant |
No |
| Series |
SAK |
| Standards |
IEC 60947-7-1 |
| Storage temperature |
-25 °C...55°C |
| stranded, min. |
max. |
| Stripping length |
8mm |
| Suitable for conductor material |
Copper |
| Terminal Width |
60mm |
| Termination |
Screw |
| Tightening torque, max. |
0.8 Nm |
| Tightening torque, min. |
0.6 Nm |
| Torque level with DMS electric |
2 |
| TS 15 offset |
16mm |
| Twin wire-end ferrules, min. |
0.5mm² |
| Type of connection |
Screw connection |
| Type of electrical connection 1 |
Screw connection |
| Type of electrical connection 2 |
Screw connection |
| Type of mounting |
Snap-on |
| UL 94 flammability rating |
V-2 |
| Volume resistance according to IEC |
1 mO |
| Width |
6 |
| Width (inches) |
0.2362 inch |
