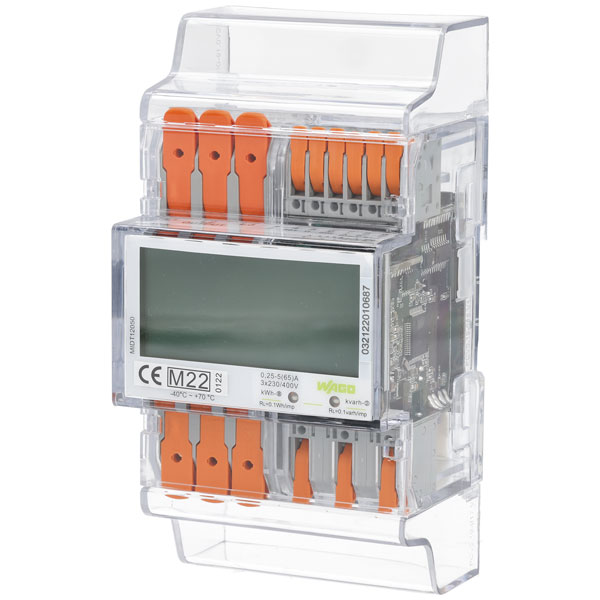

WAGO 879-3020 230/400V 65A Three Phase Energy Meter (MID) is ideal for monitoring and optimising energy consumption.
The meter also records the mains current, voltage, frequency, and power for all phases, with the ability to display these characteristics on the unit's large illuminated LED display.
Three touch-sensitive controls are included within the design of this product, but most of this meter's functionality can also be explored via Bluetooth on Android or IOS devices. This allows for easy data collection and changes to the meter's settings via a few steps in the mobile app.
- Push-in CAGE CLAMP® technology with lever for efficient installation
- Space saving design for control cabinet optimisation
- Provides energy measurements in four tariffs
- Simplified monitoring of all characteristics via illuminated LED display
| Accuracy Class |
Class B |
| Category |
Energy Measurement Technology |
| Connection |
Push-in CAGE CLAMP® |
| Depth |
63mm |
| Depth inch |
2.48 inches |
| Depth mm |
63mm |
| Fine-stranded conductor max. AWG |
4 AWG |
| Fine-stranded conductor max. mm² |
25 mm² |
| Fine-stranded conductor min. AWG |
4 AWG |
| Fine-stranded conductor min. mm² |
0.75 mm² |
| Height |
140mm |
| Height inch |
5.512 inches |
| Height mm |
140mm |
| Input Current |
≤ 65A |
| Mounting Type |
DIN-35 rail |
| Nominal Input Voltage |
3 x AC 230-400V |
| Operating Temperature |
-40 to +70°C |
| Product Main Function |
Energy Meter |
| Single-stranded conductor max. AWG |
4 AWG |
| Single-stranded conductor max. mm² |
16 mm² |
| Single-stranded conductor min. AWG |
18 AWG |
| Single-stranded conductor min. mm² |
0.75 mm² |
| Stripping length of 1 mm |
18mm |
| Stripping length up to 1 mm |
20mm |
| Type |
Energy meter |
| Type of operation |
Lever |
| Unit Weight |
KGM |
| Width |
72mm |
| Width inch |
2.835 inches |
| Width mm |
72mm |
