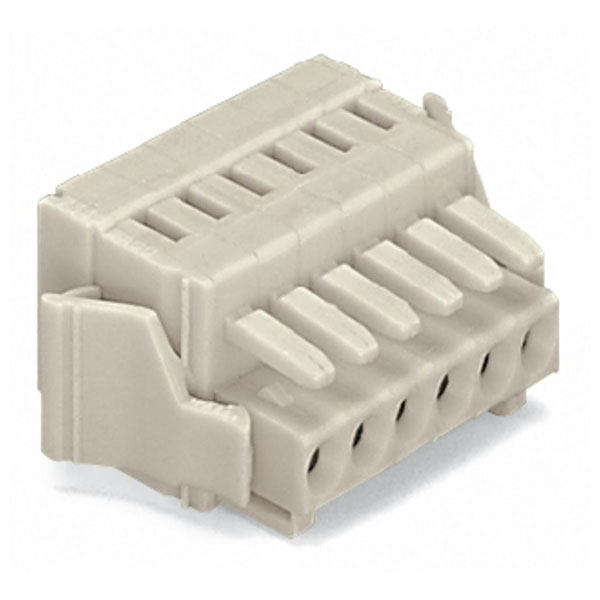

WAGO 734-120/037-000 Female MCS-MIDI 20P 3.5mm Locking Levers

WAGO
MPN
734-120/037-000
Brand
WAGO
EAN-13
4045454668655
Order Code
57-2728
Country of Origin
Germany
View Full Product Range (15)
Qty Unit Price (Ex VAT)
25+ £11.28
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 25
Available to back orderBack-order availability date - 04/06/2026


  • AWG size: 28 - 14
  • Additional product details: FEDERL.CC 3,5MM 20-P. FS.VERRKL.ZUGE
  • Colour: Light grey
  • Contact material: Copper alloy
  • Grid pitch: 3.5mm
  • Stripping length: 6 - 7mm
  • Type (manufacturer type): FEDERL.CC 3,5MM 20-P. FS.VERRKL.ZUGE
Body Style Female connector/socket
Pitch 3.5mm
No of Ways Per Row 20
No. of Rows 1
Current Rating 10 A
Colour Grey
Wire Gauge (AWG) 28 AWG
Wire Gauge (mm²) 0.08mm²
Category PCB Terminal Blocks and Connectors;Pluggable Connectors;Lighting Connection
Connection CAGE CLAMP®
Depth 18.6mm
Depth inch 0.732inches
Flammability class according to UL94 V0
Height 13.4mm
Height inch 0.528inches
Rated surge voltage (II / 2) 2.5 kV
Rated voltage (II / 2) 320 V
Stripping length of 1 mm 6mm
Stripping length up to 1 mm 7mm
Total number of potentials 20
Type of operation Operating tool
Unit Weight KGM
Weight 15.315g
Width 81.8mm
Width inch 3.22inches
