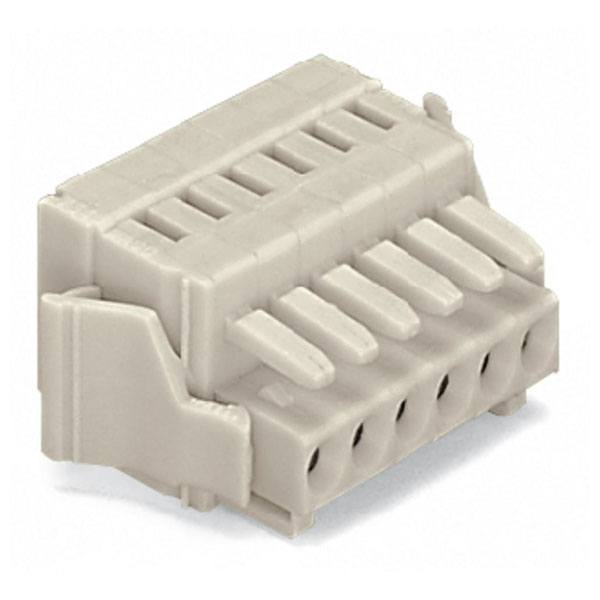

WAGO 734-107/037-000 Female MCS-MIDI 7P 3.5mm Locking Levers

MPN: 734-107/037-000
Brand: WAGO
EAN-13: 4044918495011
Order Code: 57-2673
Country of Origin: Germany

RoHS Compliant
Free UK shipping available

View Full Product Range (15)

Inc VAT

Qty	Unit Price (Ex VAT)
50+	£4.60

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 50

Available to back orderBack-order availability date - 21/05/2026

Product Range
Quick Quote

AWG size: 28 - 14
Additional product details: FEM CON-CC 3,5MM 7-POL.LOCKING LEVER
Colour: Light grey
Contact material: Copper alloy
Grid pitch: 3.5mm
Stripping length: 6 - 7mm
Type (manufacturer type): FEM CON-CC 3,5MM 7-POL.LOCKING LEVER

Body Style	Female connector/socket
Pitch	3.5mm
No of Ways Per Row	7
No. of Rows	1
Current Rating	10 A
Colour	Grey
Wire Gauge (AWG)	28 AWG
Wire Gauge (mm²)	0.08mm²
Category	PCB Terminal Blocks and Connectors;Pluggable Connectors;Lighting Connection
Connection	CAGE CLAMP®
Depth	18.6mm
Depth inch	0.732inches
Flammability class according to UL94	V0
Height	13.4mm
Height inch	0.528inches
Rated surge voltage (II / 2)	2.5 kV
Rated voltage (II / 2)	320 V
Stripping length of 1 mm	6mm
Stripping length up to 1 mm	7mm
Total number of potentials	7
Type of operation	Operating tool
Unit Weight	KGM
Weight	5.838g
Width	36.3mm
Width inch	1.429inches
