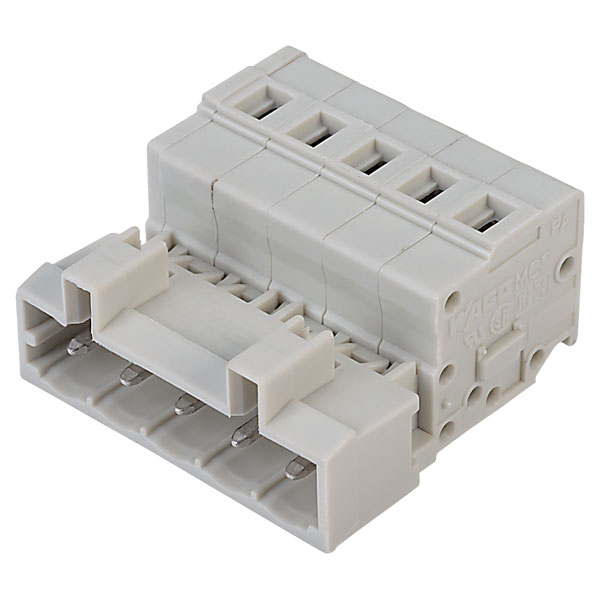

WAGO 721-605 5 Pole 5mm 12A MCS Vertical Male Header Closed Light Grey

WAGO
Order Code:

50-5952

Brand: WAGO MPN: 721-605 EAN-13: 4044918262781
Qty Unit Price (Ex VAT)
50+ £3.43
100+ £3.23
250+ £3.00
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 50
Available to back orderBack-order availability date - 07/06/2026

The WAGO PCB Spring Connector 5mm 12A is a 5-pole male connector, pin spacing 5mm/0.197. They are 100% protected against misconnection.


  • Light grey
  • 14.3 x 18.2 x 27.5mm (H x W x D)
Body Style Male connector/plug
Pitch 5mm
No of Ways Per Row 5
No. of Rows 1
Current Rating 12 A
Colour Grey
Wire Gauge (AWG) N/A
Wire Gauge (mm²) N/Amm²
Category PCB Terminal Blocks and Connectors;Pluggable Connectors
Connection CAGE CLAMP®
Depth 27.5mm
Depth inch 1.083inches
Flammability class according to UL94 V0
Height 14.3mm
Height inch 0.563inches
Mounting Feature Cable
Mounting Type Cage clamp
Rated surge voltage (II / 2) 4 kV
Rated voltage (II / 2) 630 V
Series 721
Stripping length of 1 mm 8mm
Stripping length up to 1 mm 9mm
Total number of potentials 5
Type of operation Operating tool
Unit Weight KGM
Weight 7.960 g
Width 28.2mm
Width inch 1.11inches
