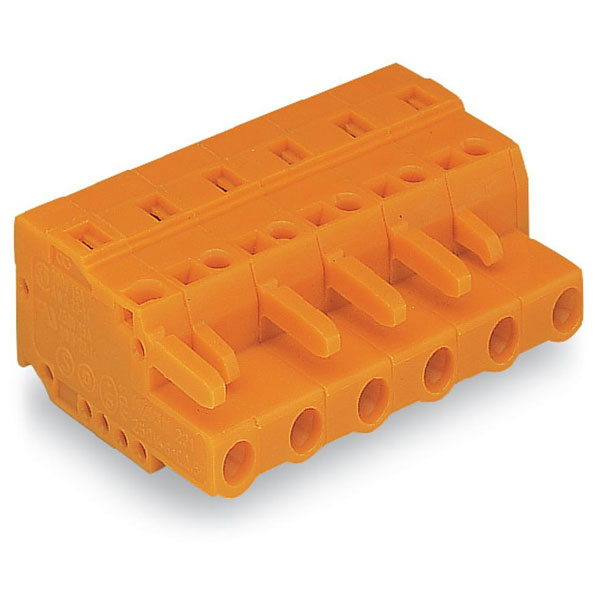

WAGO 231-709/026-000 Female Standard 9P Pitch 7.62 mm

WAGO
Order Code:

57-3447

Brand: WAGO MPN: 231-709/026-000 EAN-13: 4044918352413
Qty Unit Price (Ex VAT)
25+ £4.92
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 25
Available to back orderBack-order availability date - 18/04/2026


  • Number of Poles: 9
  • AWG size: 28 - 12
  • Additional product details: STRAIGHT FEM.CONN. 7,62 MM 9 POLES
  • Colour: Orange
  • Contact material: Copper alloy
  • Grid pitch: 7.62mm
  • Stripping length: 8 - 9mm
  • Type (manufacturer type): STRAIGHT FEM.CONN. 7,62 MM 9 POLES
  • Pack Size: 25
Body Style Female connector/socket
Pitch 7.62mm
No of Ways Per Row 9
No. of Rows 1
Current Rating 16 A
Colour Orange
Wire Gauge (AWG) 28 AWG
Wire Gauge (mm²) 0.08 mm²
Category PCB Terminal Blocks and Connectors;Pluggable Connectors;Lighting Connection
Connection CAGE CLAMP®
Depth inch 1.041 inches
Depth mm 26.45mm
Flammability class according to UL94 V0
Height inch 0.563 inches
Height mm 14.3mm
Rated surge voltage (II / 2) 6 kV
Rated voltage (II / 2) 1000 V
Stripping length of 1 mm 8mm
Stripping length up to 1 mm 9mm
Total number of potentials 9
Type of operation Operating tool
Unit Weight KGM
Weight 18.896 g
Width inch 2.659 inches
Width mm 67.54mm
