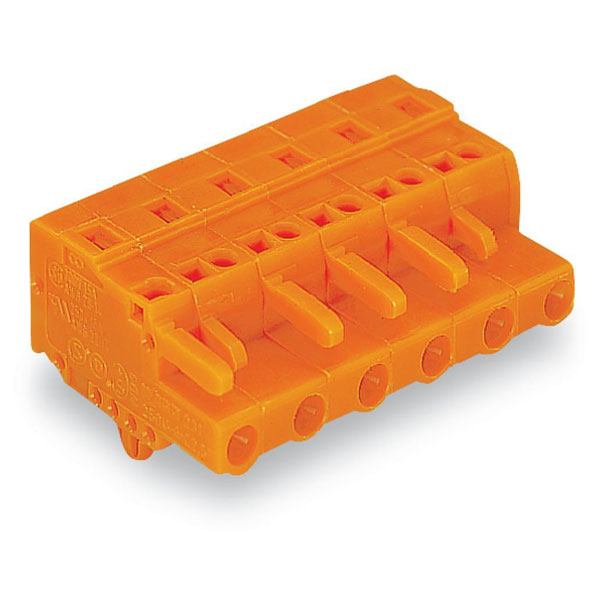

WAGO 231-708/008-000 Female Snap-in Mounting Foot 8P Pitch 7.62 mm

MPN: 231-708/008-000
Brand: WAGO
EAN-13: 4044918375764
Order Code: 57-3441
Country of Origin: Germany

RoHS Compliant
Free UK shipping available

View Full Product Range (11)

Inc VAT

Qty	Unit Price (Ex VAT)
25+	£4.67

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 25

Available to back orderBack-order availability date - 21/05/2026

Product Range
Quick Quote

Number of Poles: 8
AWG size: 28 - 12
Additional product details: MOD F-CONN W/MTG FEET
Colour: Orange
Contact material: Copper alloy
Grid pitch: 7.62mm
Stripping length: 8 - 9mm
Type (manufacturer type): MOD F-CONN W/MTG FEET
Pack Size: 25

Body Style	Female connector/socket
Pitch	7.62mm
No of Ways Per Row	8
No. of Rows	1
Current Rating	16 A
Colour	Orange
Wire Gauge (AWG)	28 AWG
Wire Gauge (mm²)	0.08mm²
Category	PCB Terminal Blocks and Connectors;Pluggable Connectors;Lighting Connection
Connection	CAGE CLAMP®
Depth	26.45mm
Depth inch	1.041inches
Flammability class according to UL94	V0
Height	18.8mm
Height inch	0.74inches
Rated surge voltage (II / 2)	6 kV
Rated voltage (II / 2)	1000 V
Stripping length of 1 mm	8mm
Stripping length up to 1 mm	9mm
Total number of potentials	8
Type of operation	Operating tool
Unit Weight	KGM
Weight	17.056g
Width	59.92mm
Width inch	2.359inches
