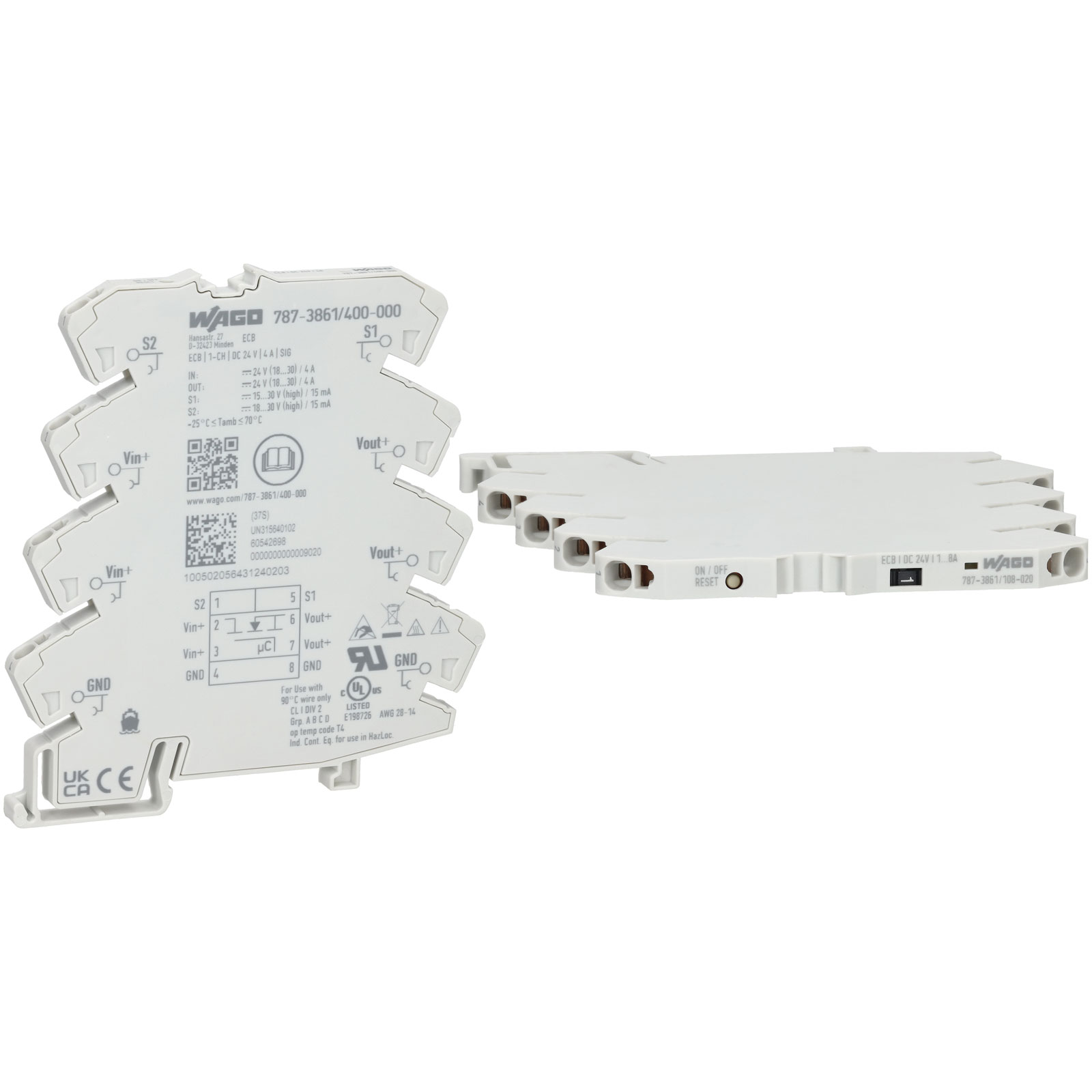

WAGO 1 Channel 24V Adjustable/Signal Electronic Circuit Breakers

These WAGO single-channel 24V DC, Electronic Circuit Breakers (ECBs) are a space-saving solution that provide safe and dependable tripping to protect your systems in the event of a short circuit or overload on their secondary side. Operation is easy and reliable, with LED status indications provided.

These ECBs come in a range of fixed trip current or adjustable trip current versions. The trip current in the adjustable version is set via an on, off and reset button. The nominal output current can be adjusted incrementally within a set range.

The Electronic Circuit Breakers in the WAGO 787 Series enable the use of economical standard power supplies. Their design minimises the amount of wiring required by offering two connectible voltage output terminals.

• Space-saving single channel ECBs with extremely slimline design
• Reliably and safely trip in the event of an overload and short circuit on the secondary side
• Switch-on capacity > 50,000μF
• Wide ambient temperature range: -25 to +70°C
• Enable the use of an economical, standard power supply
• Minimise wiring via two voltage outputs
• Maximise commoning options on both input and output sides
• Status signals – adjustable as single or group message
• Resetting, switching on/off via remote digital input signal or local switch
• Prevent power supply overload due to total inrush current, using time-delayed switch-on during interconnected operation
