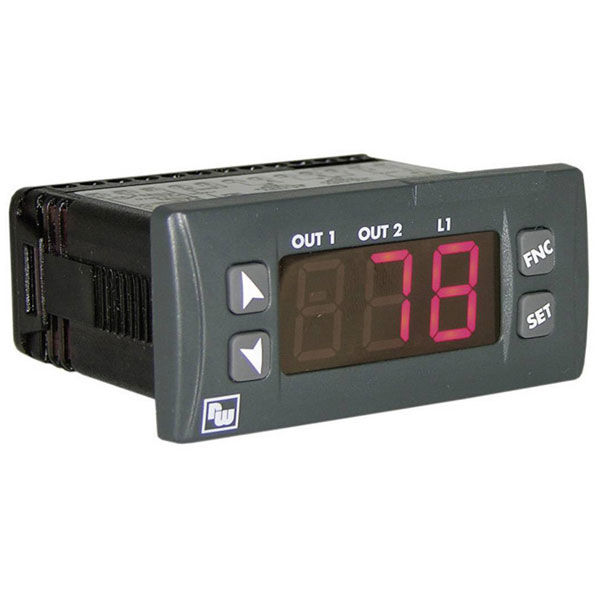

Wachendorff UR3274S1 PID Controller Universal Input 3-Digit Display IP65

Wachendorff
Order Code:

10-9696

Brand: Wachendorff MPN: UR3274S1 EAN-13: 4016138746648

Discontinued


The Wachendorff UR3274S1 PID temperature controller is a versatile device compatible with various sensors, including K, S, R, J, Pt100, Pt500, Pt1000, Ni100, PTC1K, and NTC10K. It offers flexibility with a 10 A relay, a 5 A relay, and an SSR, fitting within a compact size of 53 x 77 x 35 mm. This controller is ideal for precise temperature regulation in industrial
Type Temperature controller
Assembly dimensions 32 x 74mm
Current Consumption 30mA
Dim (L x W x H) 53 x 77 x 35 mm
Height 35mm
Interfaces RS485 Modbus RTU
IP Rating IP65 (on front)/IP20 (on back)
Length 53mm
Mounting Recess-mount
Number of relay outputs 2
Number of transistor outputs 1
Operating Voltage 24V DC
Outputs 2 relays (changeover 10 A and no 5A) and SSR Driver
Sensor Type Thermal element type K, S, R, J, Pt100, Pt500, Pt1000, Ni100, PTC 1K, NTC10K
Thermostat type PID
Width 77mm
