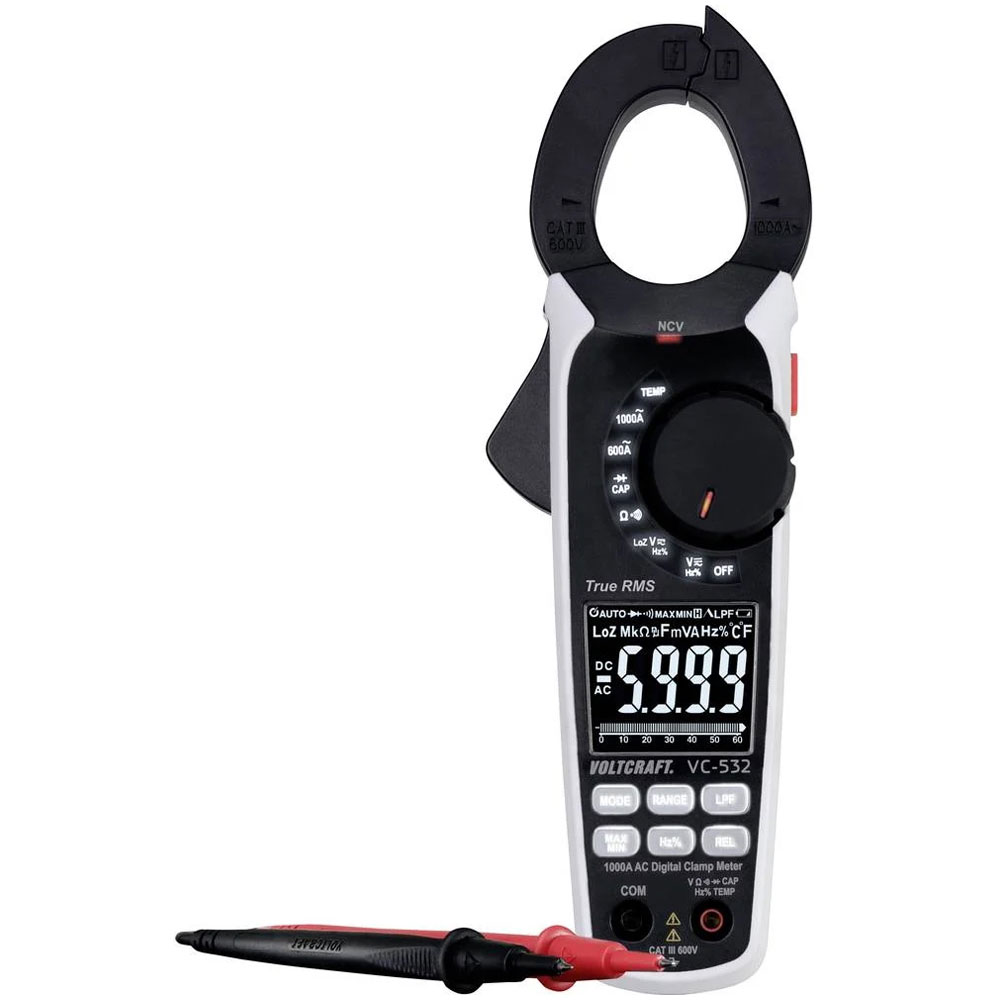

VOLTCRAFT VC-532 AC Clamp Meter Digital CAT III 600 V Display Counts 6000

The Voltcraft VC‑532 is a high-performance CAT III 600 V digital clamp meter engineered for demanding electrical diagnostics. Delivering true RMS accuracy with a precision of ±0.8 %, it features a 37 mm jaw opening capable of measuring AC currents up to 1000 A without interrupting the circuit.

This instrument supports AC/DC voltage measurements up to 600 V, resistance up to 60 MΩ, capacitance up to 6000 µF, frequency from 0.001 Hz to 10 kHz, and temperature ranging from –20 °C to 1000 °C using K-type thermocouples. Additional functions include diode testing, continuity checks with acoustic signal, automatic ranging, data hold, REL reference mode, and non-contact voltage detection (NCV). An integrated LED illuminates the measurement point for improved visibility in confined or poorly lit environments.

Encased in a rugged two-component housing with soft rubber protection, the VC‑532 offers ergonomic features such as a thumb-accessible hold button, a high-contrast 6000-count backlit display with bar graph, and automatic power-off to conserve battery life. Its slip-resistant design ensures stability on uneven surfaces, and a threaded mount allows attachment to safety straps for work at height.

Powered by three AAA batteries, the VC‑532 is supplied with safety test leads, a K-type temperature probe and adapter, and a storage pouch. Factory-calibrated for accuracy, it is ideal for machine servicing, switchgear work, industrial maintenance, and control panel diagnostics where precision, versatility, and safety are critical.

• Measurement Category: CAT III 600 V
• Display: 6000-count backlit LCD with bar graph
• AC Current: Up to 1000 A
• Voltage (AC/DC): Up to 600 V
• Resistance: Up to 60 MΩ
• Capacitance: Up to 6000 µF
• Frequency: 0.001 Hz – 10 kHz
• Temperature: –20 °C to +1000 °C (with K-type probe)
• Jaw Opening: 37 mm
• Dimensions: 237 × 78 × 40 mm
• Weight: 328 g
• Power: 3 × AAA batteries
• Additional Features: True RMS, NCV (non-contact voltage detection), diode test, continuity with acoustic signal, auto-ranging, data hold, REL reference function, LED measurement point illumination, automatic power-off
