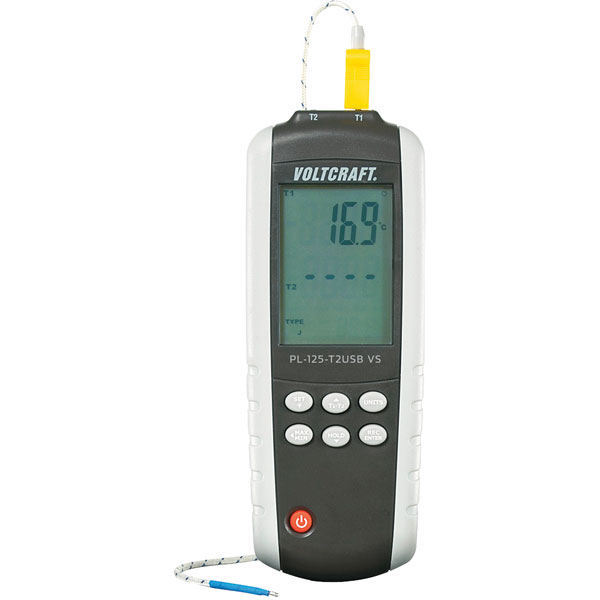

The Voltcraft PL-125-T2 is a Robust Thermometer with soft rubber protection for K- and J-type thermocouples.
The large illuminated display and the laterally arranged function keys allow for ergonomic operation. Since the device is equipped with a real-time clock, the MIN / MAX / AVG values can be read with a time stamp, making long-term monitoring much easier.
In addition to the supplied wire sensors (1 pc per channel) all K- and J-type temperature sensor can be connected with miniature thermocouple plug.
Applications: Ideal for use in laboratories and industrial areas.
What's in the Box?
2x K-type wire sensor (-20°C to +250°C)
3x batteries (AAA)
USB cable
Volt Soft Standard software CD
Operating instructions
- Accuracy (±) °C: 1°C
- Basic accuracy (±): 0.15%
- Dimensions, height: 28mm
- Dimensions, length: 162mm
- Dimensions, width: 62mm
- Max. temperature: +1372°C
- Min. temperature: -200°C
- 2 channels
- For K/ J-type thermocouples
- MAX/ MIN/ AVG with timestamp
- Data logger for 18000 measurements
- USB interface
- Temperature display in °C, °F or °K
- Auto Power Off function
- Differential measurement (T1-T2)
- Power supply: 3x AAA batteries
- Resolution (temperature): 0.1°C
- Weight: 184g
- System Requirements: .Net Framework V2.0 or later, Windows®XP SP2 / Windows Vista/ Windows 7/8/ 8.1, CD drive and USB interface
- Manufacturer's part: Voltcraft PL-125-T2
Data Logging Function |
N/A |
Number of Channels |
2 |
Sensor Type |
J, K |
Temperature Range |
-20 to +250°C |
