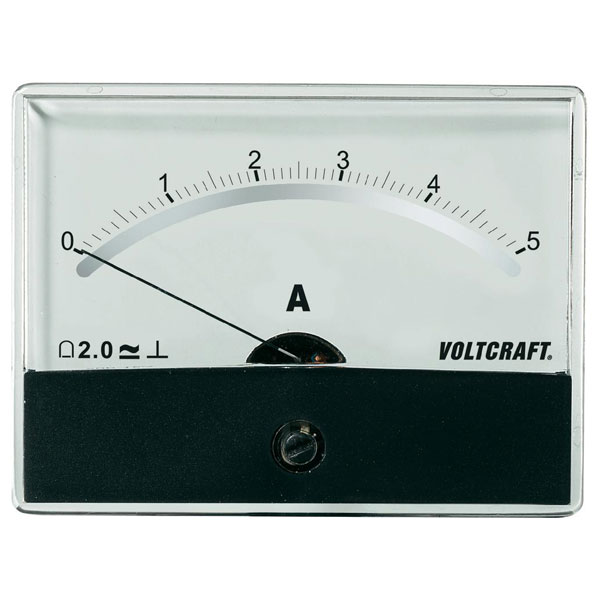

Voltcraft AM-86X65/5A/DC Analogue Panel Meter

The Voltcraft 86X65 5A DC analogue moving coil panel meter has appropriate resistors pre-installed and does not need any external components. The scale needle can be adjusted precisely with the front panel screw. It mounts in a 45mm Ø cut-out. The bezel is 9.3mm thick and the meter is 31.3mm deep (including the thickness of the panel). Supplied with panel mounting hardware and instructions.

• Accuracy class: 2.0
• Dimensions, height: 65mm
• Dimensions, width: 86mm
• Type (manufacturer type): AM-86X65/5A/DC
• Weight: 65g
