VOLTCRAFT AM-60X46/15V/DC Analogue Panel Meter

VOLTCRAFT
MPN
AM-60X46/15V/DC
Brand
VOLTCRAFT
EAN-13
4016138785890
Order Code
55-6762
Country of Origin
China
View Full Product Range (6)
Qty Unit Price (Ex VAT)
1+ £17.83
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Despatched within 4 working days - 147 in stock

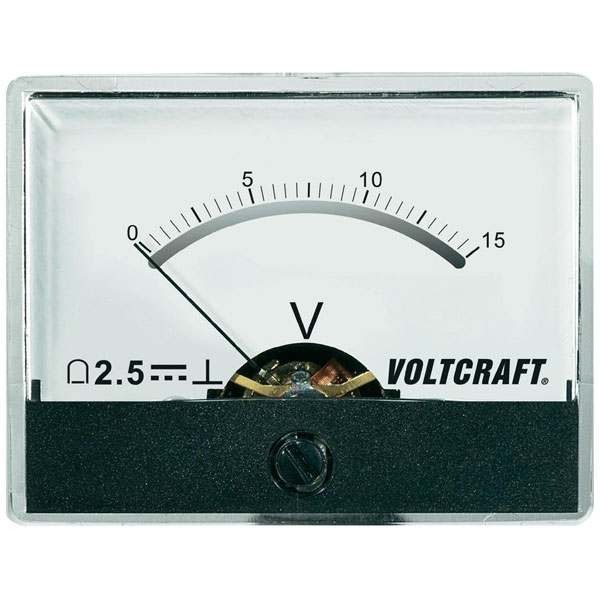

The VOLTCRAFT AM-60X46 15V DC analogue moving coil panel meter has appropriate resistors pre-installed and does not need any external components. The scale needle can be adjusted precisely with the front panel screw. It mounts in a 38mm Ø cut-out. The bezel is 8.7mm thick and the meter is 31.3mm deep (including the thickness of the panel). Supplied with panel mounting hardware and instructions.


  • Accuracy class: 2.5
  • Dimensions, height: 46mm
  • Dimensions, width: 60mm
  • Type (manufacturer type): AM-60X46/15V/DC
  • Weight: 44g
Mounting Type Panel
Accuracy Class 2.5
Colour White, Black
Dimensions 60 x 46mm
Measurement Range 15V DC
Measurement Type Voltage
Type Analogue panel meter
