Vogt Connection Technology 4803 End Connector 0.50mm² Insulated Transparent

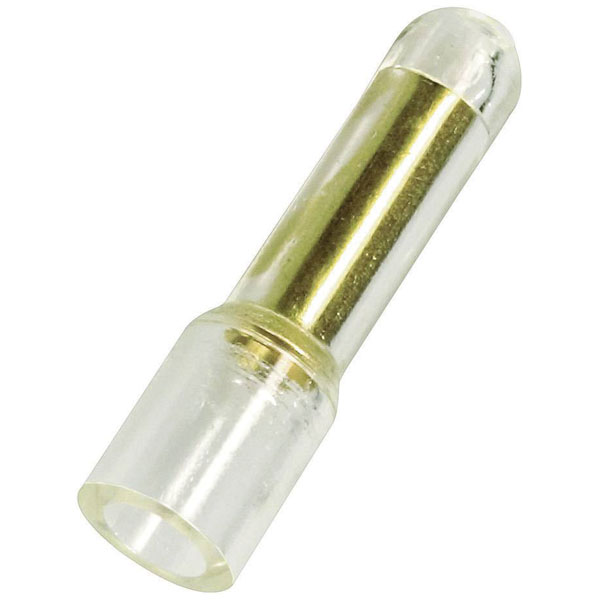

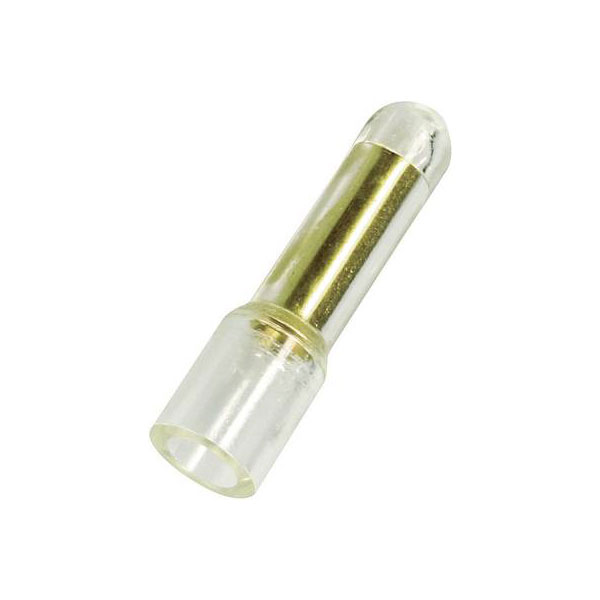

Image Representative of Range

Vogt Connection Technology 4803 End Connector 0.50mm² Insulated Transparent

Vogt Verbindungstechnik
Standard range
Order Code:

13-4166

Brand: Vogt Verbindungstechnik MPN: 4803 EAN-13: 2050000409370
Qty Unit Price (Ex VAT)
1+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
5,682 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 4803 end connector, which is a transparent, insulated crimp connector suitable for 0.50 mm² wires. It is made from copper with a tin plating and measures 2.3x7x6x15.2x7.85x5x8.8 mm. This connector is typically used in electrical wiring for secure, durable connections.
AWG max. 22
Contact material Copper silver plated
Cross section 3 x 0.5 mmmm²
Cross-section range 0.50 mm² (max)
Dim ØD1 x L x ØD2 x L1 x ØD3 x ØD4 x L2 2.3 x 7 x 6 x 15.2 x 7.85 x 5 x 8.8 mm
Dimensions ØD1 x L x ØD2 x L1 x ØD3 x ØD4 x L2 2.3 x 7 x 6 x 15.2 x 7.85 x 5 x 8.8 mm
Factory colour Transparent
Inside diameter 2.3mm
Insulation material PA
Insulation type Insulated
Length 15.2mm
Material (details) Cu sn PA
max. cross section 0.50mm²
Outside Ø 7.85mm
RoHS-compliant Yes
Temperature range -55 - +105°C
Type End connector
