Vogt Connection Technology 3534C U Terminal 4-6 mm² Hole Dia6.4 mm Not Insulated

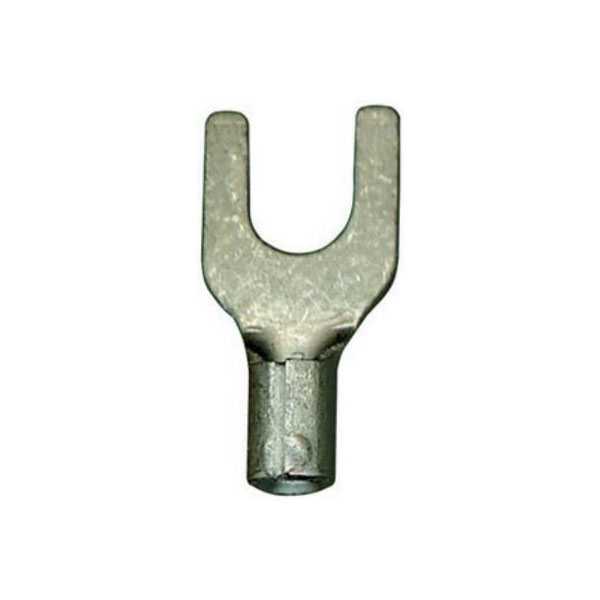

Image Representative of Range

Vogt Connection Technology 3534C U Terminal 4-6 mm² Hole Dia6.4 mm Not Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3721

Brand: Vogt Verbindungstechnik MPN: 3534C EAN-13: 2050000243882
Qty Unit Price (Ex VAT)
50+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
530 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 3534C U terminal, a non-insulated metal connector designed for 4 mm² to 6 mm² cables with a 6.4 mm hole diameter. This crimp connector is made from tinned electrolytic copper and is typically employed in electrical and electronic applications for reliable cable termination. Its durable construction ensures secure connections in various industrial environments.
AWG (min.) 12
AWG max. 10
Contact material Cathode copper, tin plated
Cross section 4 - 6mm²
Cross-section range 4 - 6 mm²
Factory colour Metal
Hole Ø 6.4mm
Insulation type Not insulated
Material (details) Tinned electrolytic copper (UL-No. E235797)
max. cross section 6mm²
Min. cross section 4mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M6
Type U terminal
