Vogt Connection Technology 3532C U Terminal 4/6mm² Hole 5.3mm Non-insulated

Image Representative of Range

Vogt Connection Technology 3532C U Terminal 4/6mm² Hole 5.3mm Non-insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3719

Brand: Vogt Verbindungstechnik MPN: 3532C EAN-13: 2050000242731
Qty Unit Price (Ex VAT)
1+ £0.159
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,613 in stock, despatched in 4 working days

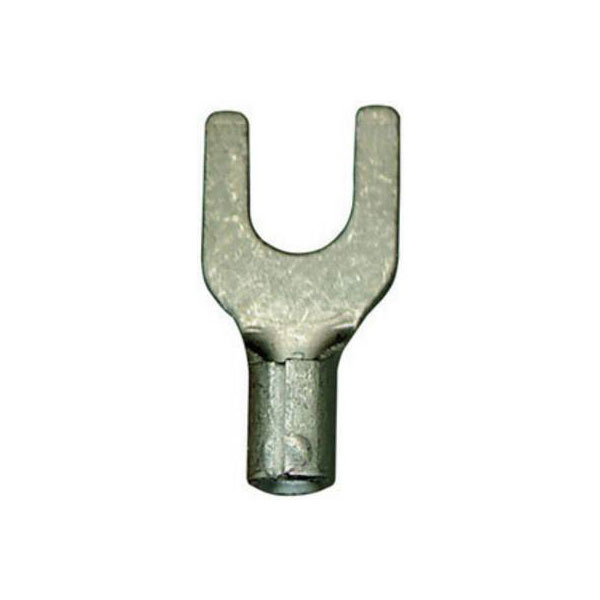

The Vogt Verbindungstechnik 3532C is a non-insulated U terminal suitable for 4 mm² to 6 mm² cables with a 5.3 mm hole diameter. Made from tinned electrolytic copper, it is a robust crimp connector used for secure electrical connections. This component is ideal for applications requiring reliable forked cable lugs in electrical and electronic systems.
AWG (min.) 12
AWG max. 10
Contact material Cathode copper, tin plated
Cross section 4 - 6mm²
Cross-section range 4 - 6 mm²
Factory colour Metal
Hole Ø 5.3mm
Insulation type Not insulated
Material (details) Tinned electrolytic copper (UL-No. E235797)
max. cross section 6mm²
Min. cross section 4mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M5
Type U terminal
