Vogt Connection Technology 3530C U Terminal 4-6mm² 4.3mm Hole Non-Insulated

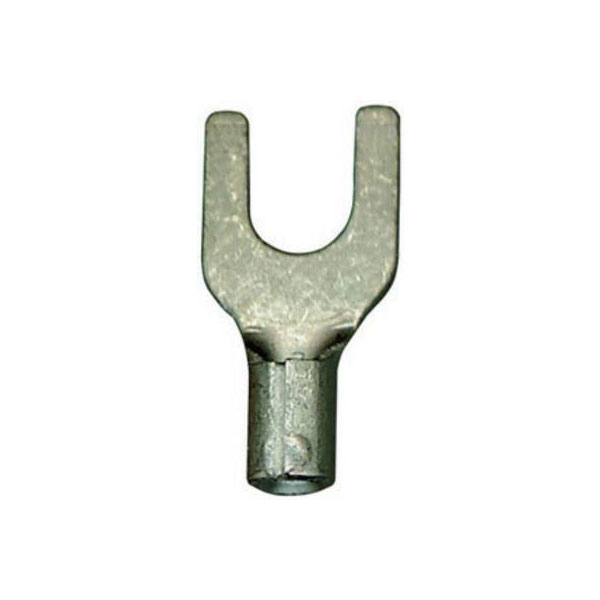

Image Representative of Range

Vogt Connection Technology 3530C U Terminal 4-6mm² 4.3mm Hole Non-Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3716

Brand: Vogt Verbindungstechnik MPN: 3530C EAN-13: 2050000242816
Qty Unit Price (Ex VAT)
1+ £0.139
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
556 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3530C U terminal is a metal crimp connector made from tinned electrolytic copper, designed for wire sizes of 4 mm² to 6 mm² with a hole diameter of 4.3 mm. It is uninsulated and typically used in electrical applications for connecting wires in a secure manner. This component is commonly applied in environments needing reliable and robust connections such as in panel assemblies and electrical installations.
AWG (min.) 12
AWG max. 10
Contact material Cathode copper, tin plated
Cross section 4 - 6mm²
Cross-section range 4 - 6 mm²
Factory colour Metal
Hole Ø 4.3mm
Insulation type Not insulated
Material (details) Tinned electrolytic copper (UL-No. E235797)
max. cross section 6mm²
Min. cross section 4mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M4
Type U terminal
