Vogt Connection Technology 3521C U Terminal 1.50-2.50mm² Metal 5.3mm Hole

Image Representative of Range

Vogt Connection Technology 3521C U Terminal 1.50-2.50mm² Metal 5.3mm Hole

Vogt Verbindungstechnik
Standard range
Order Code:

13-3713

Brand: Vogt Verbindungstechnik MPN: 3521C EAN-13: 2050000242878
Qty Unit Price (Ex VAT)
1+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,485 in stock, despatched in 4 working days

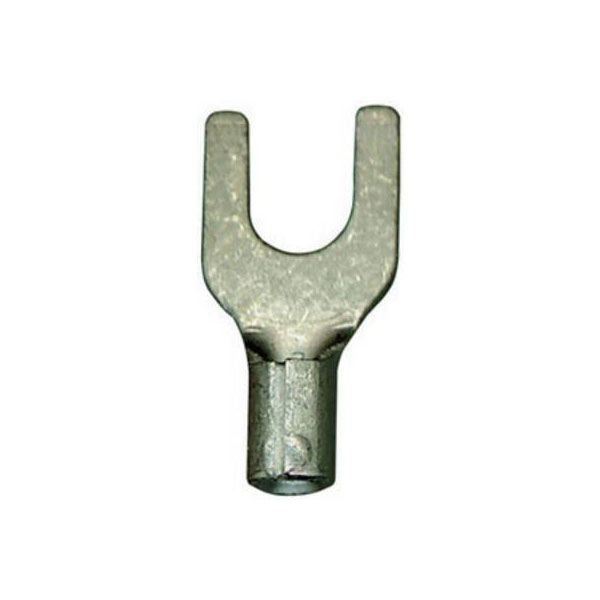

The Vogt Verbindungstechnik 3521C U terminal is made from tinned electrolytic copper and is designed for use with cables sized 1.50 mm² to 2.50 mm². This non-insulated crimp connector features a forked design with a hole diameter of 5.3 mm, making it suitable for secure screw terminal connections. It is typically used in electrical and electronic applications where reliable conductivity and quick connections are required.
AWG (min.) 16
AWG max. 14
Contact material Cathode copper, tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Metal
Hole Ø 5.3mm
Insulation type Not insulated
Material (details) Tinned electrolytic copper (UL-No. E235797)
max. cross section 2.50mm²
Min. cross section 1.50mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M5
Type U terminal
