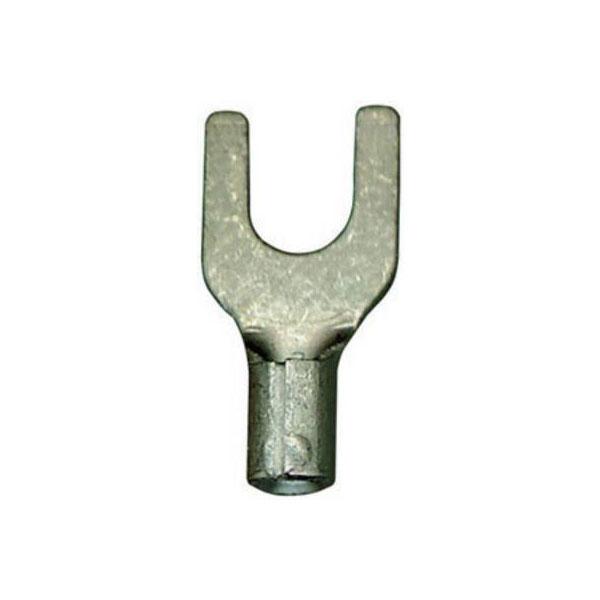

Vogt Connection Technology 3515C U Terminal 1.50-2.50 mm² Dia3.2 mm Metal

Image Representative of Range

Vogt Connection Technology 3515C U Terminal 1.50-2.50 mm² Dia3.2 mm Metal

Vogt Verbindungstechnik
Standard range
Order Code:

13-3708

Brand: Vogt Verbindungstechnik MPN: 3515C EAN-13: 2050000243042
Qty Unit Price (Ex VAT)
50+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
2,840 in stock, despatched in 4 working days

Vogt Verbindungstechnik's 3515C U terminal is a non-insulated crimp connector designed for wire sizes 1.50 mm² to 2.50 mm² with a hole diameter of 3.2 mm. Made from tinned electrolytic copper, it offers reliable conductivity and corrosion resistance. This forked cable shoe is typically used in electrical installations requiring secure wire terminations without additional insulation.
AWG (min.) 16
AWG max. 14
Contact material Cathode copper, tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Metal
Hole Ø 3.2mm
Insulation type Not insulated
Material (details) Tinned electrolytic copper (UL-No. E235797)
max. cross section 2.50mm²
Min. cross section 1.50mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M3
Type U terminal
