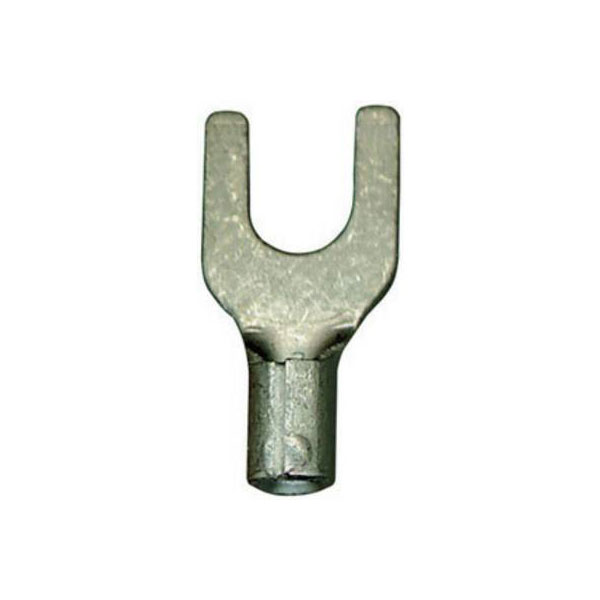

Vogt Connection Technology 3510C U Terminal 0.50-1mm² Dia5.3mm Metal Uninsulated

Image Representative of Range

Vogt Connection Technology 3510C U Terminal 0.50-1mm² Dia5.3mm Metal Uninsulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3706

Brand: Vogt Verbindungstechnik MPN: 3510C EAN-13: 2050000243127
Qty Unit Price (Ex VAT)
50+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
2,668 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 3510C U terminal, designed for wire sizes between 0.50 mm² and 1 mm² with a 5.3 mm diameter hole. This uninsulated connector made of tinned electrolytic copper is ideal for reliable crimp connections in electrical and electronic applications. It is commonly used for secure terminations in wiring systems.
AWG (min.) 22
AWG max. 18
Contact material Cathode copper, tin plated
Cross section 0.5 - 1mm²
Cross-section range 0.50 - 1 mm²
Factory colour Metal
Hole Ø 5.3mm
Insulation type Not insulated
Material (details) Tinned electrolytic copper (UL-No. E235797)
max. cross section 1mm²
Min. cross section 0.50mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M5
Type U terminal
