Vogt 460108.00050 Ferrule 0.5 mm² Partially Insulated Orange 50 pieces

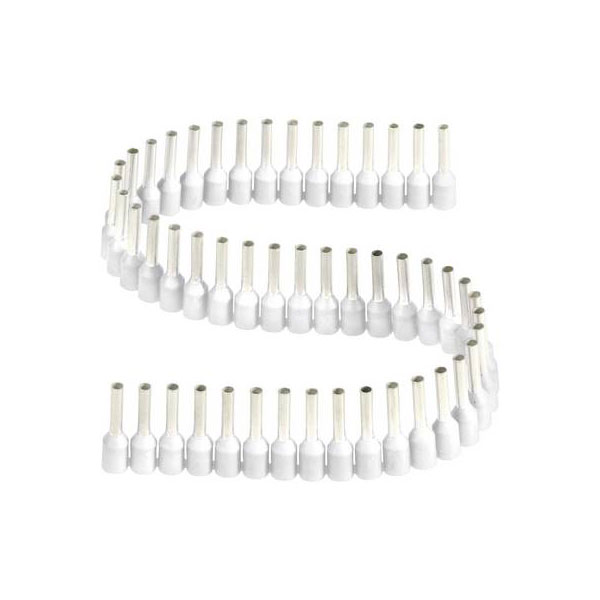

Image Representative of Range

Vogt 460108.00050 Ferrule 0.5 mm² Partially Insulated Orange 50 pieces

Vogt Verbindungstechnik
Extended range
Order Code:

13-4112

Brand: Vogt Verbindungstechnik MPN: 460108.00050 EAN-13: 2050000410291
Qty Unit Price (Ex VAT)
3+ £1.33
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 3 weeks

Vogt Verbindungstechnik manufactures the 460108.00050 ferrule, which is a partially insulated orange component suitable for 0.5 mm² wires. Packaged in sets of 50, these ferrules are typically used for securing wire connections in electrical and electronic assemblies. Their insulation helps prevent short circuits and improves connection reliability.
Insulation Polypropylene
Type Ferrule
AWG max. 22
Contact material Cathode copper, tin plated
Country colour code DE
Cross section 3 - 0.5 mm²
Cross section per core 0.5mm²
Cross-section x Length 0.5 mm² x 8 mm
Factory colour Orange
Insulation material PP
Insulation type Partially insulated
Length 14mm
Material (details) Tinned electrolytic copper
RoHS-compliant Yes
Sleeve length 8mm
Temperature range up to +105°C
