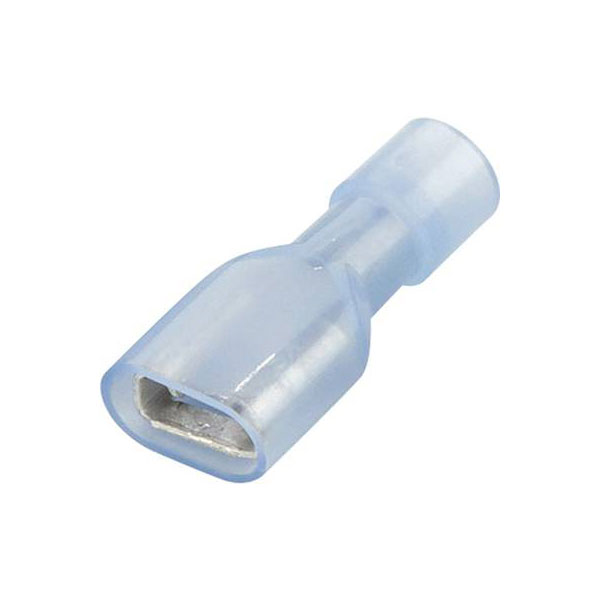

Vogt 3966 Blade Receptacle 6.3mm Width 0.8mm Thickness 180° Blue

Image Representative of Range

Vogt 3966 Blade Receptacle 6.3mm Width 0.8mm Thickness 180° Blue

Vogt Verbindungstechnik
Standard range
Order Code:

13-4059

Brand: Vogt Verbindungstechnik MPN: 3966 EAN-13: 2050000242229
Qty Unit Price (Ex VAT)
20+ £0.317
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
6,108 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3966 blade receptacle is an insulated connector featuring a width of 6.3 mm, thickness of 0.8 mm, and a blue sleeve. This crimp connector is typically used for secure wire connections in electrical and electronic assemblies. It is ideal for applications requiring reliable and durable insulated connections.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Full insulation PA
Insulation material Polyamide 6.6
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 6.3 x 0.8
Misc Attribute 2 sleeve
Size 6.3 x 0.8 mm
Support sleeve Yes
Type Blade receptacle
