Vogt 396508 Blade Receptacle 4.8x0.8mm 180° Insulated Blue

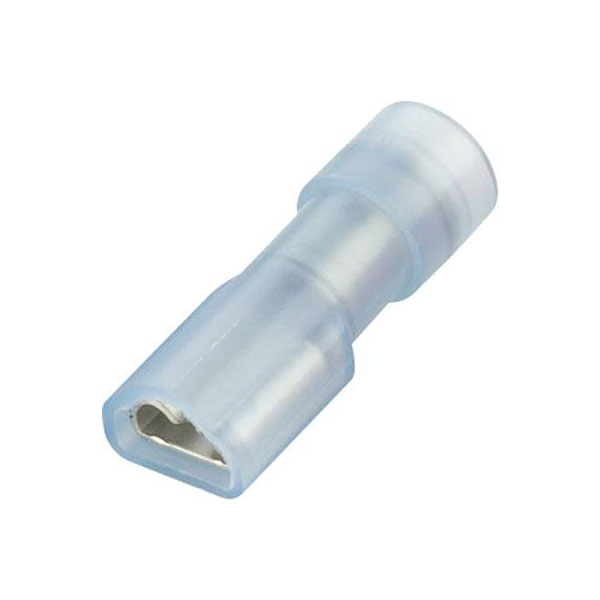

Image Representative of Range

Vogt 396508 Blade Receptacle 4.8x0.8mm 180° Insulated Blue

Vogt Verbindungstechnik
Standard range
Order Code:

13-4058

Brand: Vogt Verbindungstechnik MPN: 396508 EAN-13: 2050000241703
Qty Unit Price (Ex VAT)
25+ £0.198
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
6,339 in stock, despatched in 4 working days

The Vogt Verbindungstechnik blade receptacle features a connector width of 4.8 mm and a thickness of 0.8 mm, with a 180° orientation and insulated in blue. It is a crimp connector suitable for electrical applications needing secure and insulated connections. Typically used in automotive or industrial wiring systems, it ensures reliable electrical connectivity.
Connection angle 180°
Connector thickness 0.8mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Full insulation PA
Insulation material Polyamide 6.6
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 4.8 x 0.8 mm
Misc Attribute 2 sleeve
Size 4.8 x 0.8 mm
Support sleeve Yes
Type Blade receptacle
