Vogt 3963S Blade Receptacle 6.3mm 0.8mm 180° Insulated Red

Image Representative of Range

Vogt 3963S Blade Receptacle 6.3mm 0.8mm 180° Insulated Red

Vogt Verbindungstechnik
Standard range
Order Code:

13-4053

Brand: Vogt Verbindungstechnik MPN: 3963S EAN-13: 2050000241642
Qty Unit Price (Ex VAT)
50+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
5,334 in stock, despatched in 4 working days

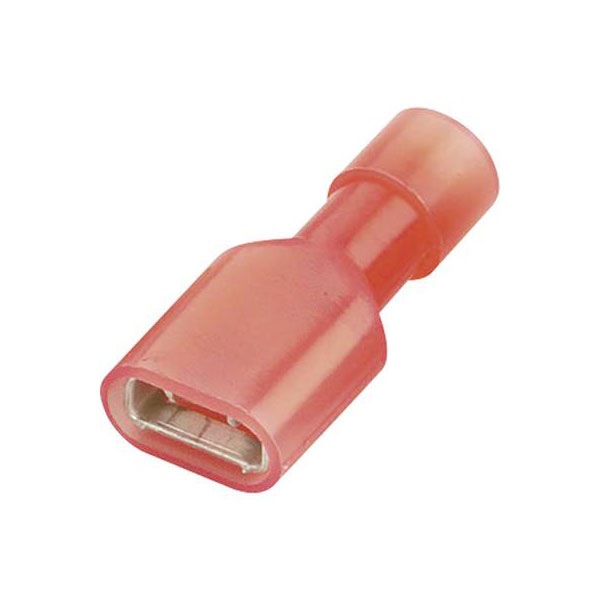

The Vogt Verbindungstechnik 3963S is a red, insulated blade receptacle connector with dimensions of 6.3 mm width and 0.8 mm thickness, designed for secure electrical connections. This crimp connector is ideal for applications requiring safe and reliable wire terminations in automotive, electrical, or industrial contexts. Its full insulation and 180° orientation provide added protection and ease of installation.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Full insulation PA
Insulation material Polyamide 6.6
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 6.3 x 0.8 mm
Misc Attribute 2 sleeve
Size 6.3 x 0.8 mm
Support sleeve No
Type Blade receptacle
