Vogt 3963 Blade Receptacle 6.3mm Wide 0.8mm Thick 180° Insulated Red

Image Representative of Range

Vogt 3963 Blade Receptacle 6.3mm Wide 0.8mm Thick 180° Insulated Red

Vogt Verbindungstechnik
Standard range
Order Code:

13-4051

Brand: Vogt Verbindungstechnik MPN: 3963 EAN-13: 2050000242144
Qty Unit Price (Ex VAT)
1+ £0.257
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
4,385 in stock, despatched in 4 working days

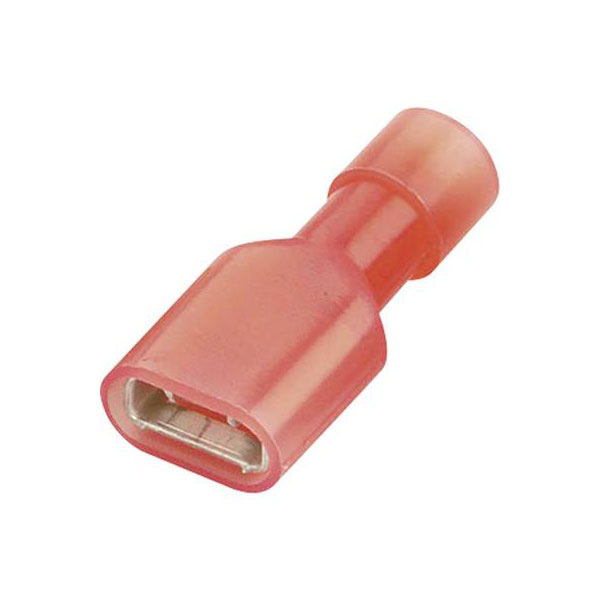

The Vogt Verbindungstechnik 3963 blade receptacle is an insulated crimp connector with a 6.3 mm width and 0.8 mm thickness. It is designed for secure and reliable electrical connections, often used in automotive and industrial applications. The red insulation provides additional safety and protection against short circuits.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Full insulation PA
Insulation material Polyamide 6.6
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 6.3 x 0.8
Misc Attribute 2 sleeve
Size 6.3 x 0.8 mm
Support sleeve Yes
Type Blade receptacle
