Vogt 396208 Blade Receptacle 4.8mm Width 0.8mm Thick Insulated Blue

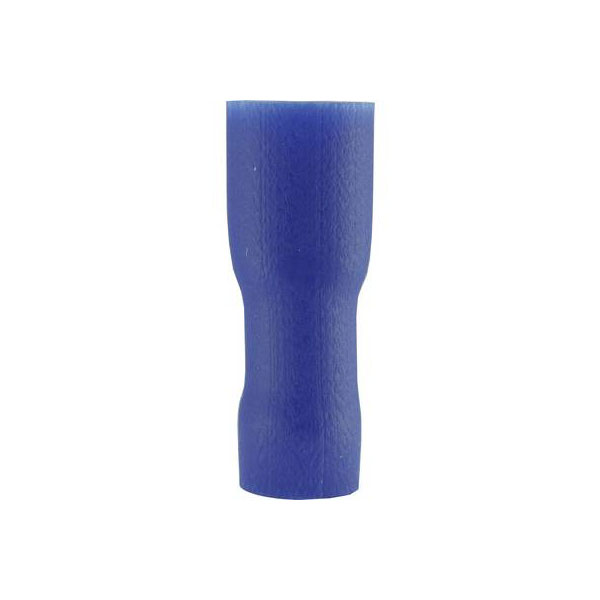

Image Representative of Range

Vogt 396208 Blade Receptacle 4.8mm Width 0.8mm Thick Insulated Blue

Vogt Verbindungstechnik
Standard range
Order Code:

13-4049

Brand: Vogt Verbindungstechnik MPN: 396208 EAN-13: 2050000243172
Qty Unit Price (Ex VAT)
1+ £0.218
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,650 in stock, despatched in 4 working days

Vogt Verbindungstechnik's 396208 blade receptacle is an insulated, blue crimp connector with a width of 4.8 mm and a thickness of 0.8 mm. It is primarily used for secure electrical connections in various industrial and automotive applications. This receptacle ensures reliable and safe operation by providing full insulation.
Connection angle 180°
Connector thickness 0.8mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Full insulation PVC
Insulation material PVC
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 4.8 x 0.8 mm
Misc Attribute 2 sleeve
Size 4.8 x 0.8 mm
Support sleeve Yes
Type Blade receptacle
