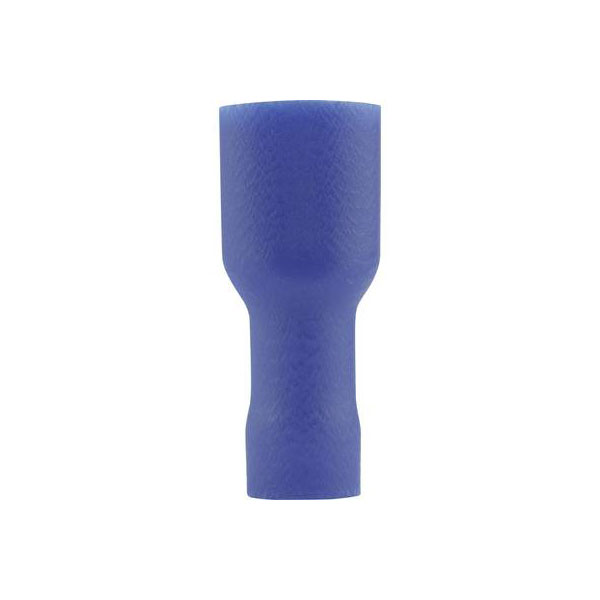

Vogt 396205 Blade Receptacle 4.8mm Width 0.5mm Thick 180° Insulated Blue

Image Representative of Range

Vogt 396205 Blade Receptacle 4.8mm Width 0.5mm Thick 180° Insulated Blue

Vogt Verbindungstechnik
Standard range
Order Code:

13-4047

Brand: Vogt Verbindungstechnik MPN: 396205 EAN-13: 2050000241970
Qty Unit Price (Ex VAT)
25+ £0.198
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,153 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 396205 is a blue insulated blade receptacle featuring a connector width of 4.8 mm and a thickness of 0.5 mm. It is typically used for safe and reliable electrical connections in various applications. Its 180-degree design and crimp connector functionality make it suitable for quick and efficient installations.
Connection angle 180°
Connector thickness 0.5mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Full insulation PVC
Insulation material PVC
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 4.8 x 0.5 mm
Misc Attribute 2 sleeve
Size 4.8 x 0.5 mm
Support sleeve Yes
Type Blade receptacle
