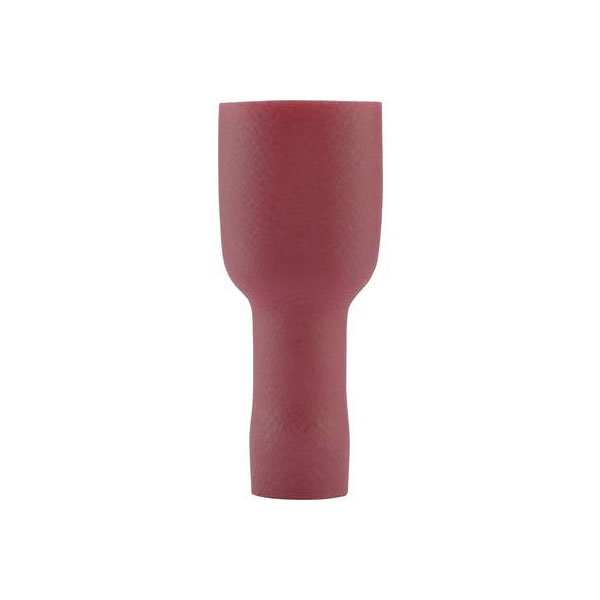

Vogt 396105 Blade Receptacle 4.8mm Width 0.5mm Thick 180° Insulated Red

Image Representative of Range

Vogt 396105 Blade Receptacle 4.8mm Width 0.5mm Thick 180° Insulated Red

Vogt Verbindungstechnik
Standard range
Order Code:

13-4043

Brand: Vogt Verbindungstechnik MPN: 396105 EAN-13: 2050000241796
Qty Unit Price (Ex VAT)
1+ £0.139
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
3,415 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 396105 is a red insulated blade receptacle with a connector width of 4.8 mm and a thickness of 0.5 mm. This crimp connector is designed for reliable electrical connections, providing a 180° connection angle. It is commonly used in automotive and electronic applications for securing wire connections.
Connection angle 180°
Connector thickness 0.5mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Full Partially insulation PVC
Insulation material PVC
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 4.8 x 0.5 mm
Misc Attribute 2 sleeve
Size 4.8 x 0.5 mm
Support sleeve Yes
Type Blade receptacle
