Vogt 396005 Blade Receptacle 2.8mm 0.5mm 180° Insulated Red

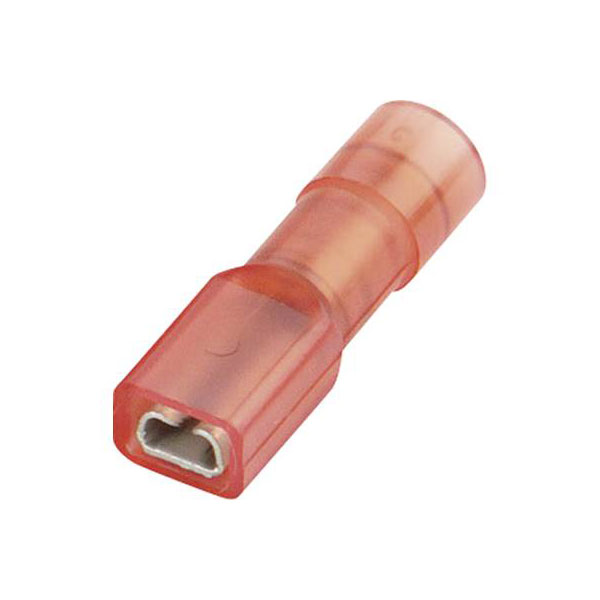

Image Representative of Range

Vogt 396005 Blade Receptacle 2.8mm 0.5mm 180° Insulated Red

Vogt Verbindungstechnik
Standard range
Order Code:

13-4040

Brand: Vogt Verbindungstechnik MPN: 396005 EAN-13: 2050000241628
Qty Unit Price (Ex VAT)
20+ £0.218
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
4,814 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 396005 is a red insulated blade receptacle with a connector width of 2.8 mm and thickness of 0.5 mm. Ideal for crimp connections, it is commonly used in electrical wiring applications to ensure secure and efficient electrical connectivity. This connector is particularly suited for settings requiring reliable insulation and 180° orientation.
Connection angle 180°
Connector thickness 0.5mm
Connector width 2.8mm
Contact material Brass tin plated
Cross section 0.75 -1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Full PA insulation PA
Insulation material Polyamide 6.6
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 2.8 x 0.5 mm
Misc Attribute 2 sleeve
Size 2.8 x 0.5 mm
Support sleeve Yes
Type Blade receptacle
