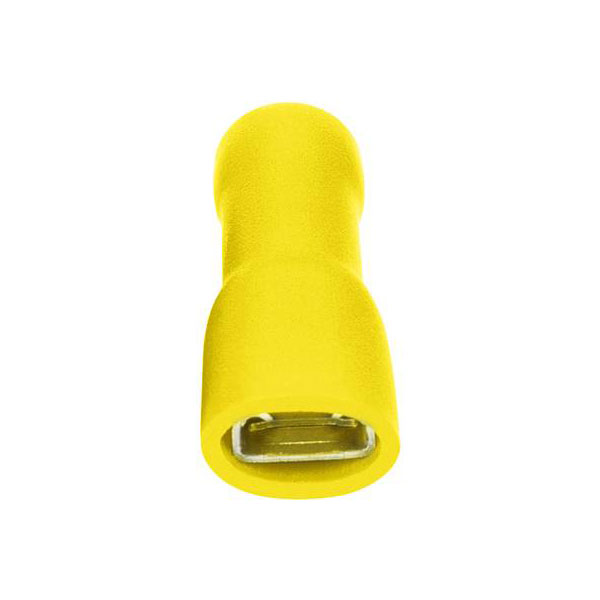

Vogt 3947 Blade Receptacle 6.3mm 0.8mm 180° Insulated Yellow

Image Representative of Range

Vogt 3947 Blade Receptacle 6.3mm 0.8mm 180° Insulated Yellow

Vogt Verbindungstechnik
Extended range
Order Code:

13-4035

Brand: Vogt Verbindungstechnik MPN: 3947 EAN-13: 2050000242519
Qty Unit Price (Ex VAT)
20+ £0.218
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 3 weeks

The Vogt Verbindungstechnik 3947 is an insulated blade receptacle connector with a width of 6.3 mm and thickness of 0.8 mm, designed for secure electrical connections. It's ideal for use in automotive and electronic applications where dependable and insulated connections are required. The yellow insulation provides additional protection and aids in quick identification.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 4 - 6mm²
Cross-section range 4 - 6 mm²
Factory colour Yellow
Insulation Full insulation PVC
Insulation material PVC
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 6mm²
Min. cross section 4mm²
Misc Attribute 1 6.3 x 0.8
Misc Attribute 2 sleeve
Size 6.3 x 0.8 mm
Support sleeve Yes
Type Blade receptacle
