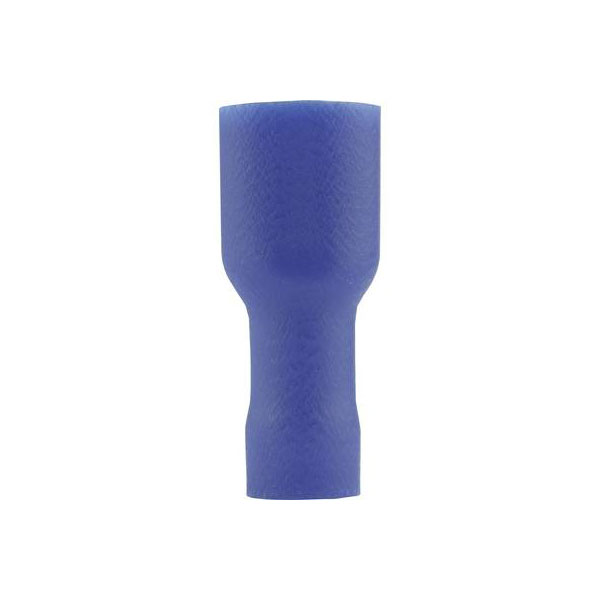

Vogt 3945S Blade Receptacle 6.3mm Wide 0.8mm Thick Insulated Blue

Image Representative of Range

Vogt 3945S Blade Receptacle 6.3mm Wide 0.8mm Thick Insulated Blue

Vogt Verbindungstechnik
Standard range
Order Code:

13-4034

Brand: Vogt Verbindungstechnik MPN: 3945S EAN-13: 2050000237287
Qty Unit Price (Ex VAT)
1+ £0.099
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,241 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3945S is a blue insulated blade receptacle connector with a width of 6.3 mm and a thickness of 0.8 mm. It is designed for secure crimping and provides a reliable electrical connection. This connector is commonly used in automotive and electrical applications for connecting cables to devices with blade terminals.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Full insolated PVC
Insulation material PVC
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 6.3 x 0.8 mm
Misc Attribute 2 sleeve
Size 6.3 x 0.8 mm
Support sleeve No
Type Blade receptacle
