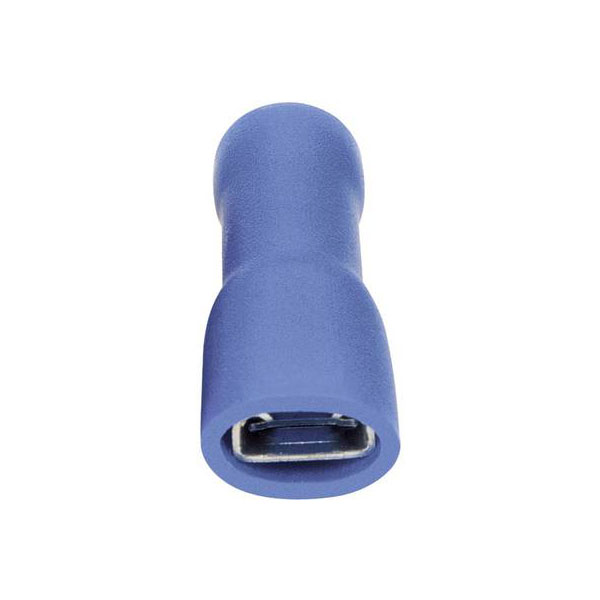

Vogt 3945 Blade Receptacle Connector 6.3x0.8 mm 180° Insulated Blue

Image Representative of Range

Vogt 3945 Blade Receptacle Connector 6.3x0.8 mm 180° Insulated Blue

Vogt Verbindungstechnik
Standard range
Order Code:

13-4033

Brand: Vogt Verbindungstechnik MPN: 3945 EAN-13: 2050000243028
Qty Unit Price (Ex VAT)
20+ £0.238
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
5,893 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3945 is an insulated blade receptacle with a connector width of 6.3 mm and a thickness of 0.8 mm, available in blue. It is suitable for crimp connections in electrical and electronic applications, ensuring secure and reliable connectivity. This component is typically used in automotive and industrial environments where durable connectors are essential.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Full insulation PVC
Insulation material PVC
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 6.3 x 0.8
Misc Attribute 2 sleeve
Size 6.3 x 0.8 mm
Support sleeve Yes
Type Blade receptacle
