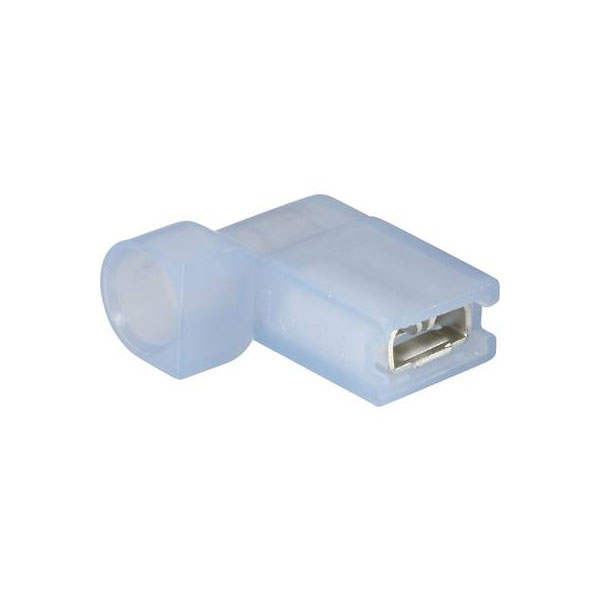

Vogt 393208S Blade Receptacle 4.8mm Width 0.8mm Thickness 90° Insulated Blue

Image Representative of Range

Vogt 393208S Blade Receptacle 4.8mm Width 0.8mm Thickness 90° Insulated Blue

Vogt Verbindungstechnik
Standard range
Order Code:

13-4011

Brand: Vogt Verbindungstechnik MPN: 393208S EAN-13: 2050000241543
Qty Unit Price (Ex VAT)
1+ £0.159
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
5,397 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 393208S blade receptacle features a connector width of 4.8 mm and a thickness of 0.8 mm, insulated in blue for safety. It is designed as a 90° angled female spade connector, ideal for secure electrical connections in various applications such as automotive or household electronics. This crimp connector is reliable for use in environments requiring durable and insulated electrical connectivity.
Connection angle 90°
Connector thickness 0.8mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Full insulated PA
Insulation material Polyamide 6.6
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 without support sleeve (Form B)
Misc Attribute 2 4.8 x 0.8 mm
Size 4.8 x 0.8 mm
Support sleeve No
Type Blade receptacle
