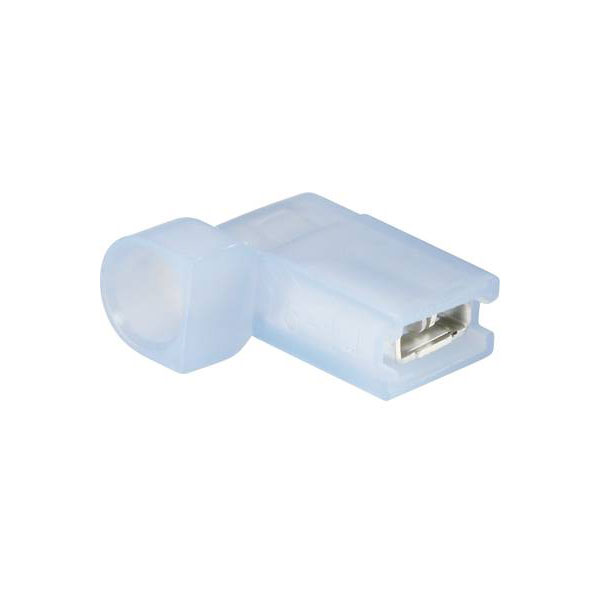

Vogt 393205S Blade Receptacle 4.8mm 0.5mm 90° Blue Insulated

Image Representative of Range

Vogt 393205S Blade Receptacle 4.8mm 0.5mm 90° Blue Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-4010

Brand: Vogt Verbindungstechnik MPN: 393205S EAN-13: 2050000241536
Qty Unit Price (Ex VAT)
50+ £0.159
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
667 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 393205S is a blue insulated blade receptacle connector with a width of 4.8 mm and thickness of 0.5 mm, designed at a 90° angle. This crimp connector is typically used in electrical applications requiring secure and reliable wire connections. It is ideal for use in automotive, industrial, and electronic equipment.
Connection angle 90°
Connector thickness 0.5mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Full PA insulation
Insulation material Polyamide 6.6
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 without support sleeve (Form B)
Misc Attribute 2 4.8 x 0.5 mm
Size 4.8 x 0.5 mm
Support sleeve No
Type Blade receptacle
