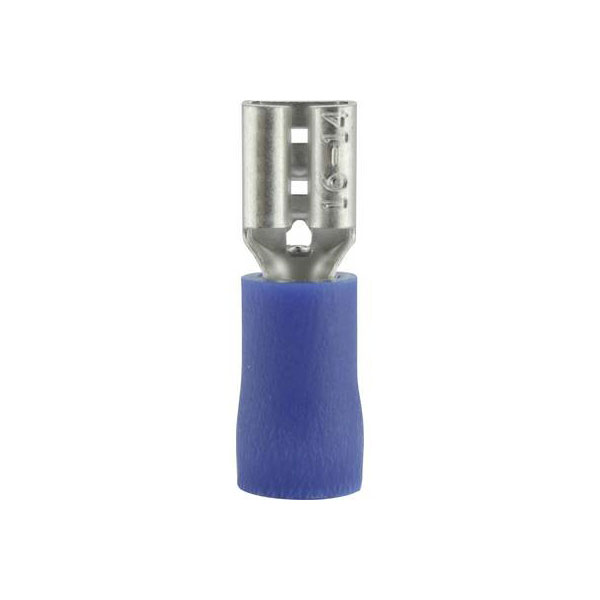

Vogt 3905 Blade Receptacle 4.8mm Width 0.8mm Thick Partially Insulated

Image Representative of Range

Vogt 3905 Blade Receptacle 4.8mm Width 0.8mm Thick Partially Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3962

Brand: Vogt Verbindungstechnik MPN: 3905 EAN-13: 2050000242045
Qty Unit Price (Ex VAT)
1+ £0.218
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
381 in stock, despatched in 4 working days

Vogt Verbindungstechnik's 3905 blade receptacle features a width of 4.8 mm and a thickness of 0.8 mm, with partial insulation in a blue finish. It is typically used in crimp connectors, providing reliable electrical connections in various electronic applications. Suitable for use in automotive and electronic assembly, it ensures secure and efficient connectivity.
Connection angle 180°
Connector thickness 0.8mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Partially insulated
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 4.8 x 0.8 mm
Misc Attribute 2 sleeve
Size 4.8 x 0.8 mm
Support sleeve Yes
Type Blade receptacle
