Vogt 3903 Blade Receptacle 6.3mm 0.8mm Red Partially Insulated 180°

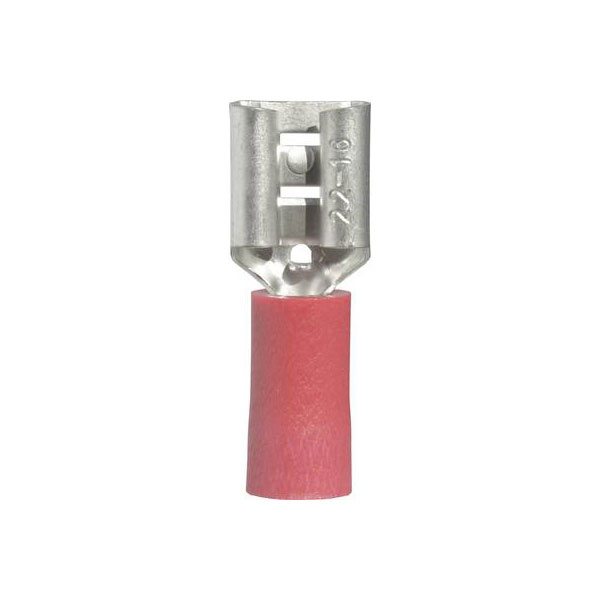

Image Representative of Range

Vogt 3903 Blade Receptacle 6.3mm 0.8mm Red Partially Insulated 180°

Vogt Verbindungstechnik
Standard range
Order Code:

13-3957

Brand: Vogt Verbindungstechnik MPN: 3903 EAN-13: 2050000241956
Qty Unit Price (Ex VAT)
25+ £0.198
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
5,230 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3903 blade receptacle is a red, partially insulated connector with a width of 6.3 mm and a thickness of 0.8 mm. It is typically used in crimp connector applications for secure electrical connections in various electronic and automotive systems. The design allows for easy and reliable coupling with compatible terminals.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Partially insulated PVC
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 6.3 x 0.8
Misc Attribute 2 sleeve
Size 6.3 x 0.8 mm
Support sleeve Yes
Type Blade receptacle
