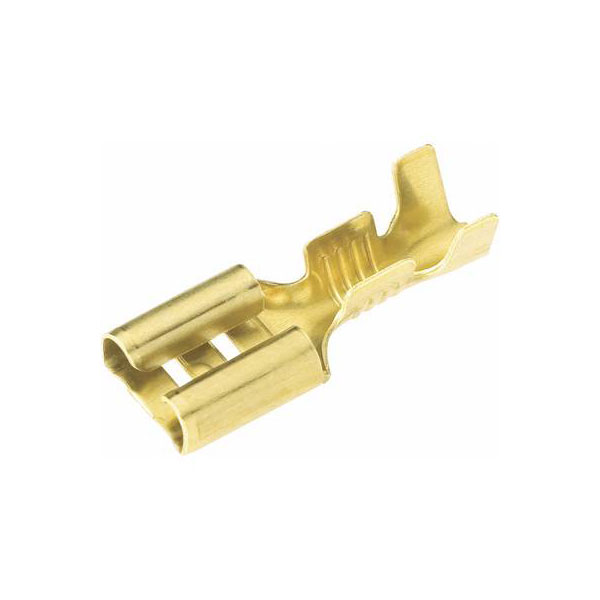

Vogt 3800.60 Blade Receptacle 4.8mm Width 0.5mm Thick Not Insulated

Image Representative of Range

Vogt 3800.60 Blade Receptacle 4.8mm Width 0.5mm Thick Not Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3872

Brand: Vogt Verbindungstechnik MPN: 3800.60 EAN-13: 2050000243769
Qty Unit Price (Ex VAT)
1+ £0.060
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
15,465 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3800.60 blade receptacle is a metal crimp connector with a 4.8 mm width and 0.5 mm thickness. It is uninsulated and typically used in electrical applications to connect wires securely. This component is ideal for situations where a strong and reliable electrical connection is required.
AWG (min.) 22
AWG max. 18
Connection angle 180°
Connector thickness 0.5mm
Connector width 4.8mm
Contact material Brass
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Metal
Insulation type Not insulated
Material (details) Polished brass
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 4.8 x 0.5 mm
Size 4.8 x 0.5 mm
Support sleeve No
Type Blade receptacle
