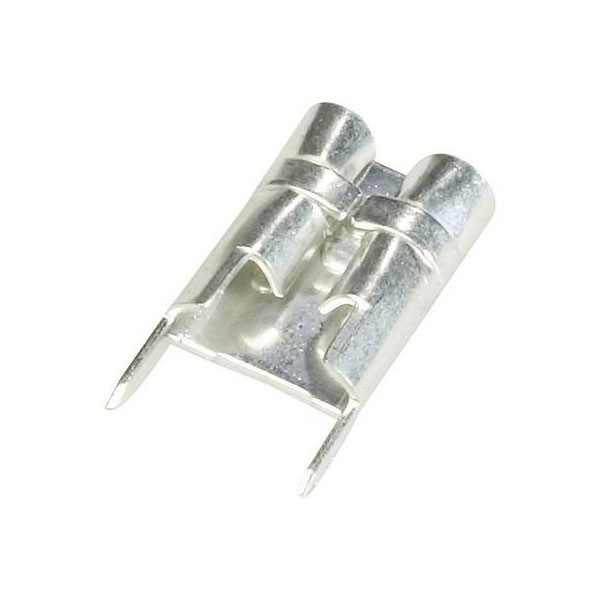

Vogt 3785F05.68 Blade Receptacle 2.8mm 180° Tin-plated Brass

Image Representative of Range

Vogt 3785F05.68 Blade Receptacle 2.8mm 180° Tin-plated Brass

Vogt Verbindungstechnik
Extended range
Order Code:

13-3867

Brand: Vogt Verbindungstechnik MPN: 3785F05.68 EAN-13: 2050000409226
Qty Unit Price (Ex VAT)
1+ £0.080
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 4 weeks

The Vogt Verbindungstechnik 3785F05.68 is an uninsulated blade receptacle PCB-SMD connector with a width of 2.8 mm and a thickness of 0.5 mm. This metal connector is designed for soldering to a printed circuit board (PCB). It is typically used in electronic applications requiring secure and reliable electrical connections.
Connection angle 180°
Connector thickness 0.5mm
Connector width 2.8mm
Contact material Brass tin plated
Factory colour Metal
Insulation type Not insulated
Material (details) Brass, tin-plated
Misc Attribute 1 2.8 x 0.4 mm
Size 2.8 x 0.5 mm
Type Blade receptacle
