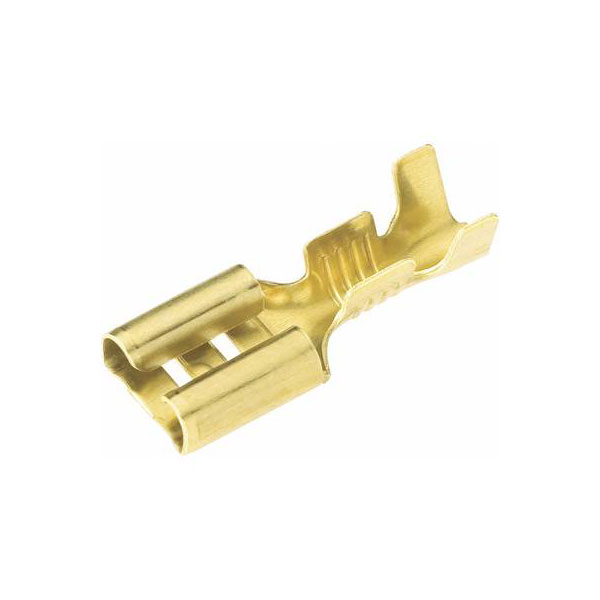

Vogt 3760A.60 Blade Receptacle 2.8mm Width 0.5mm Thickness 180° Metal

Image Representative of Range

Vogt 3760A.60 Blade Receptacle 2.8mm Width 0.5mm Thickness 180° Metal

Vogt Verbindungstechnik
Standard range
Order Code:

13-3835

Brand: Vogt Verbindungstechnik MPN: 3760A.60 EAN-13: 2050000243653
Qty Unit Price (Ex VAT)
1+ £0.040
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
70 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 3760A.60 blade receptacle featuring a connector width of 2.8 mm and thickness of 0.5 mm. This metal component is uninsulated and commonly used in crimp connectors and spade terminals. It is suitable for various electrical applications requiring secure connections.
AWG (min.) 26
AWG max. 24
Connection angle 180°
Connector thickness 0.5mm
Connector width 2.8mm
Contact material Brass
Cross section 0.14 - 0.3mm²
Cross-section range 0.104 - 0.30 mm²
Factory colour Metal
Insulation type Not insulated
Material (details) Polished brass
max. cross section 0.30mm²
Min. cross section 0.104mm²
Misc Attribute 1 2.8 x 0.5 mm
Size 2.8 x 0.5 mm
Support sleeve No
Type Blade receptacle
