Vogt 3743 Pin Terminal 10mm² Not Insulated Metal 1 piece

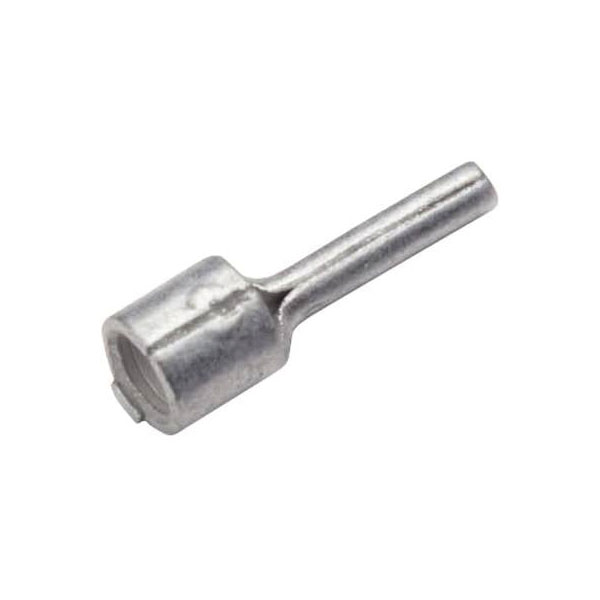

Image Representative of Range

Vogt 3743 Pin Terminal 10mm² Not Insulated Metal 1 piece

Vogt Verbindungstechnik
Standard range
Order Code:

13-3830

Brand: Vogt Verbindungstechnik MPN: 3743 EAN-13: 2050000233579
Qty Unit Price (Ex VAT)
1+ £0.396
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
894 in stock, despatched in 4 working days

Vogt Verbindungstechnik manufactures the 3743 pin terminal, designed for 10 mm² connections and made from metal without insulation. The pin terminal measures 4.5x22x12 mm and features a blade terminal style suited for crimp connector applications. It is typically used in electrical installations and connections requiring secure and reliable crimped terminations.
Type Pin terminal
Contact material Cathode copper, tin plated
Crimp area (max.) 10mm²
Cross section 10mm²
Cross-section range 10 mm² (max)
Dim (D2 x L x L1) 4.5 x 22 x 12 mm
Dimensions (D2 x L x L1) 4.5 x 22 x 12 mm
Factory colour Metal
Insulation type Not insulated
Material (details) Tinned electrolytic copper
max. cross section 10mm²
Pin length 12mm
Pin Ø 4.5mm
RoHS-compliant Yes
Standards DIN 46230/ UL-No. E235797
Support sleeve No
Temperature range - +125°C
