Vogt 3508C U Terminal 0.50-1 mm² Metal Hole Dia4.3 mm Uninsulated

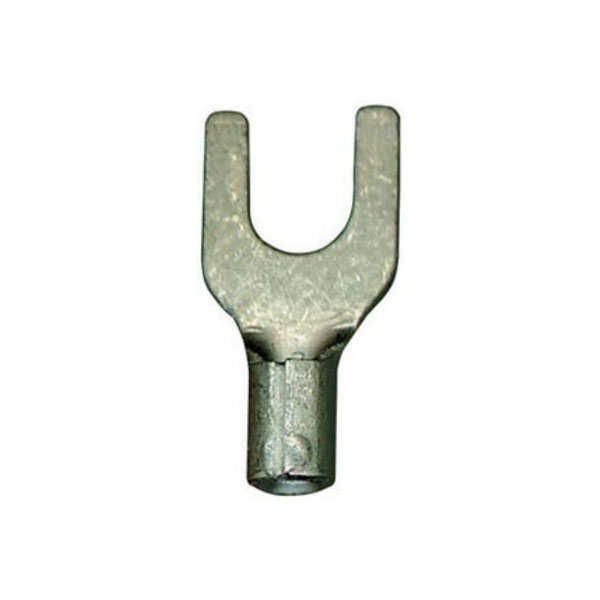

Image Representative of Range

Vogt 3508C U Terminal 0.50-1 mm² Metal Hole Dia4.3 mm Uninsulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-3703

Brand: Vogt Verbindungstechnik MPN: 3508C EAN-13: 2050000243202
Qty Unit Price (Ex VAT)
1+ £0.060
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,840 in stock, despatched in 4 working days

Vogt Verbindungstechnik produces the 3508C U terminal, a non-insulated crimp connector crafted from tinned electrolytic copper. It accommodates wire sizes from 0.50 mm² to 1 mm² and features a hole diameter of 4.3 mm. This terminal is typically used for electrical applications requiring secure wire connections, such as in lighting or automotive systems.
AWG (min.) 22
AWG max. 18
Contact material Cathode copper, tin plated
Cross section 0.5 - 1mm²
Cross-section range 0.50 - 1 mm²
Factory colour Metal
Hole Ø 4.3mm
Insulation type Not insulated
Material (details) Tinned electrolytic copper (UL-No. E235797)
max. cross section 1mm²
Min. cross section 0.50mm²
RoHS-compliant Yes
Support sleeve No
Thread Size M4
Type U terminal
