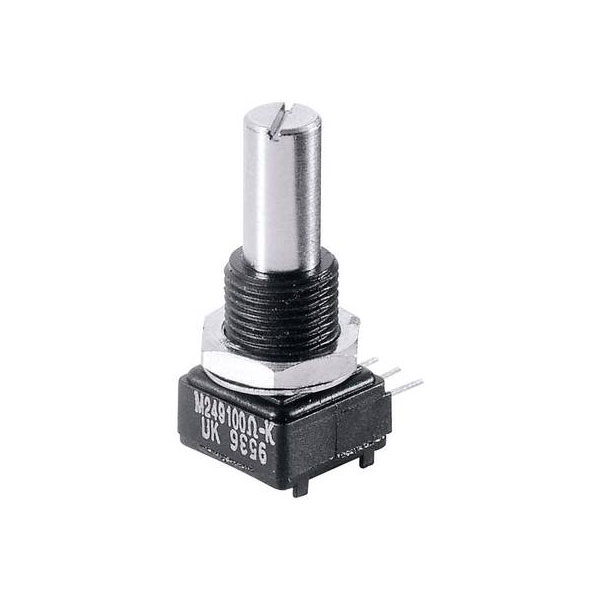

Vishay 249FGJS0XB25105KA Precision potentiometer 1W 1MΩ Mono Rotary 1pc

Vishay 249FGJS0XB25105KA Precision potentiometer is a robust component designed for precise rotational control in electronic circuits. This mono rotary potentiometer is rated at 1 watt and offers a total resistance of 1 megaohm, making it suitable for applications requiring fine resolution and high reliability. As a versatile slide potentiometer, it is commonly utilised in audio controls, measurement equipment, and other instrumentation where accurate variable resistance is critical. The device's construction ensures long-term stability and performance under varying electrical and environmental conditions, supporting a broad range of engineering applications where precision adjustments are essential.

To find out more about our range of Vishay resistors, diodes, capacitors and switches, please visit our Vishay brand page.

Type	Linear
Resistance	1mO
Power Rating	1W
Axle Diameter	6.35mm
Connection	Solder pins
Content	1
Dimensions	(L x W x H) 12.7 x 12.7 x 11.4 mm
Electrical Angle	265°
Height	11.4mm
Length	12.7mm
Lever Length	12.7mm
Max. temperature	+125°C
Mechanical Angle	295°
Min. temperature	-55°C
Output	Mono
Product Type	Precision potentiometer
Resistance characteristic	linear
Temperature Coefficient	100ppm/°C
Temperature Range	-55 - +125°C
Thread Length	9.5mm
Tolerance ±	10%
Width	12.7mm
